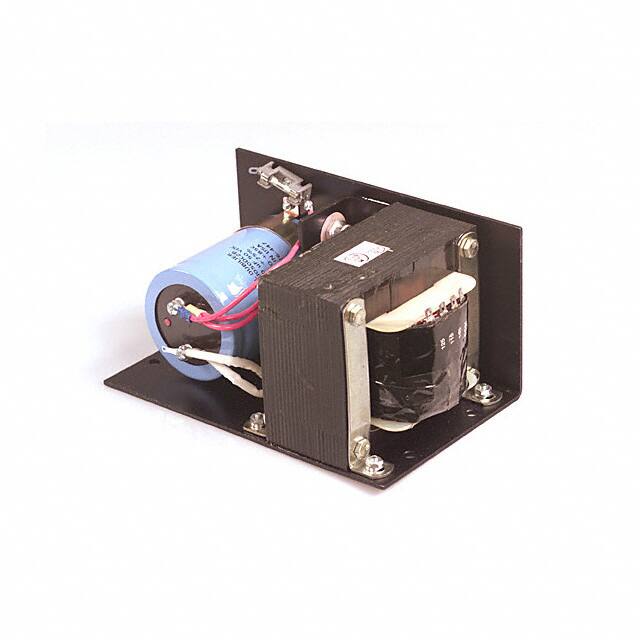

The Inventus Power BFS500-48 is an open-frame, unregulated brute force power supply designed for ITE (Commercial) applications. It provides a 48V DC output at 10A, delivering up to 500W of power. The unit operates with an input voltage range of 105-125 VAC and a frequency of 47-400 Hz.
Key electrical specifications include 1500 VAC input/output isolation and a ripple/noise level of +/-3% RMS from DC to 50MHz. The operating temperature range is 0°C to 40°C, with a storage temperature range of -55°C to 85°C. The power supply measures 9.0 x 4.6 x 5.6 inches and weighs 20 lbs.
This power supply is suitable for various commercial applications requiring a stable and reliable power source. Its robust design and open-frame construction facilitate integration into larger systems. The chassis mount type ensures secure installation.
The operating temperature range is 0°C to 40°C.
The input voltage is 105/115/125 VAC at 47-400 Hz.
The output voltage is 48 Vdc at 10 A under full load.
The output power is 500W.
The mounting type is chassis mount.
The size is 9.0 x 4.6 x 5.6 inches and the weight is 20 lbs.
