| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

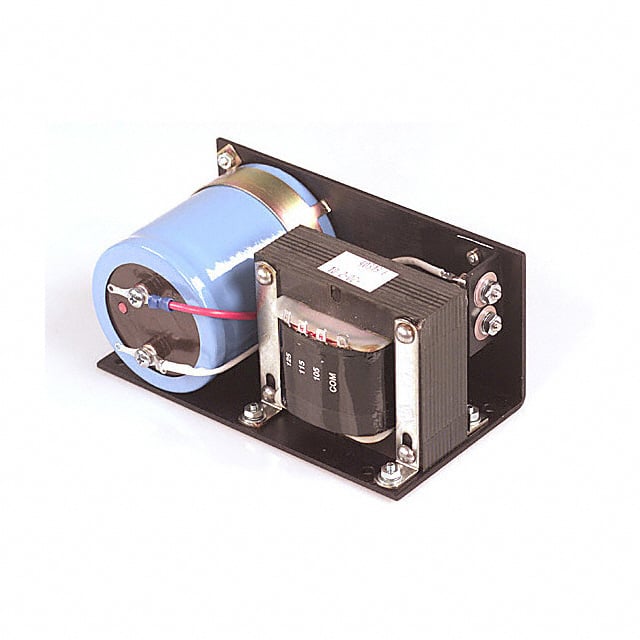

The Inventus Power BFS100-48 is a 100W AC/DC converter designed for ITE (Commercial) applications. It provides a regulated 48V DC output with a current rating of 1.8A.
This converter operates with an input voltage range of 105/115/125 VAC and a frequency of 47-400 Hz. It offers 1500 VAC input/output isolation. The operating temperature range is from 0°C to 40°C, with a storage temperature range of -55°C to 85°C.
The unit is chassis mountable and has dimensions of 7.12" L x 3.25" W x 3.81" H (180.9mm x 82.6mm x 96.8mm). It weighs 6 lbs.
Key electrical specifications include a ripple and noise level of +/-3% RMS from DC to 50MHz.
The BFS100-48 provides a 48 Vdc output voltage.
The maximum output current for the BFS100-48 is 1.8 A.
The operating temperature range for the BFS100-48 is 0°C to 40°C.
The BFS100-48 is a chassis mount type.
The dimensions of the BFS100-48 are 7.12" L x 3.25" W x 3.81" H (180.9mm x 82.6mm x 96.8mm).
