| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,258 pcs
|
4258 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Climatic Category | |
| Contact Resistance | |
| Diameter | |
| Dielectric Material | |
| Effective Angle of Rotation | |
| Features | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Life | |
| Maximum Axial Thrust | |
| Minimum Storage Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Operating Torque | |
| Termination Style | |
| Test Voltage (DC) | |
| Voltage | |
| Voltage (AC) |

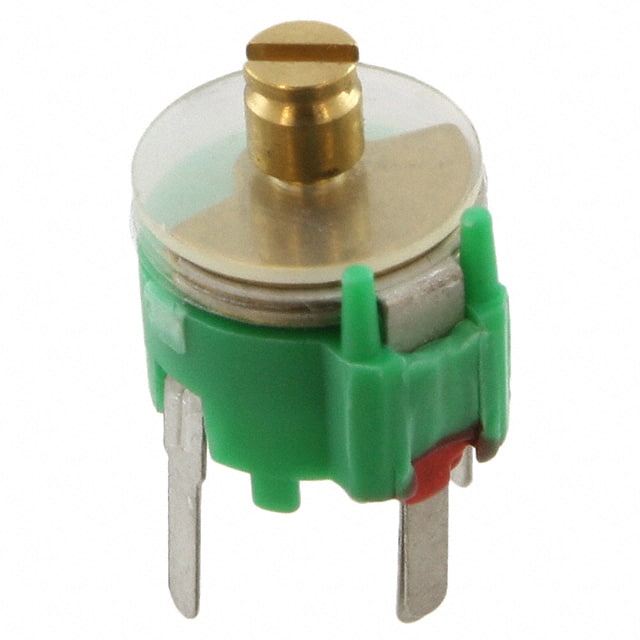

This Vishay BFC280811229 is a film dielectric trimmer capacitor designed for general purpose applications. It offers a capacitance range of 2.5 pF to 22 pF with a rated DC voltage of 250 V and a maximum AC voltage of 25 V. The dielectric material is polypropylene (PP), ensuring stable performance across an operating temperature range of -40°C to +70°C.
The component features a through-hole mounting style with radial leads and a round head housing diameter of 7.5 mm. Adjustment is possible from both the top and bottom. Key electrical characteristics include a maximum contact resistance of 10 mΩ, minimum insulation resistance of 10000 MΩ, and a test voltage of 500 VDC. The effective angle of rotation is 180°, with an operating torque of 1 mNm to 15 mNm for capacitance values below 33 pF. The trimmer is rated for 10 adjustment cycles under normal use.
Typical applications include impedance matching circuits, RF tuning, antennas, and general consumer or industrial equipment. The lead spacing is 5.08 mm and the overall diameter is 7.6 mm with a height of 10 mm. The climatic category per IEC 60068 is 40/070/21.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.46 | $7.46 |
| 10+ | $5.54 | $5.54 |
| 50+ | $4.78 | $4.78 |
| 100+ | $4.54 | $4.54 |
| 500+ | $4.14 | $4.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance range is 2.5 pF to 22 pF.
The rated DC voltage is 250 V.
The operating temperature range is -40°C to +70°C.
The dielectric material is Polypropylene (PP).
The package is Radial, Round and mounting type is Through Hole.
RoHS3 Compliant, REACH Unaffected, MSL 1 (Unlimited) — values are low confidence and should be verified.
