| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

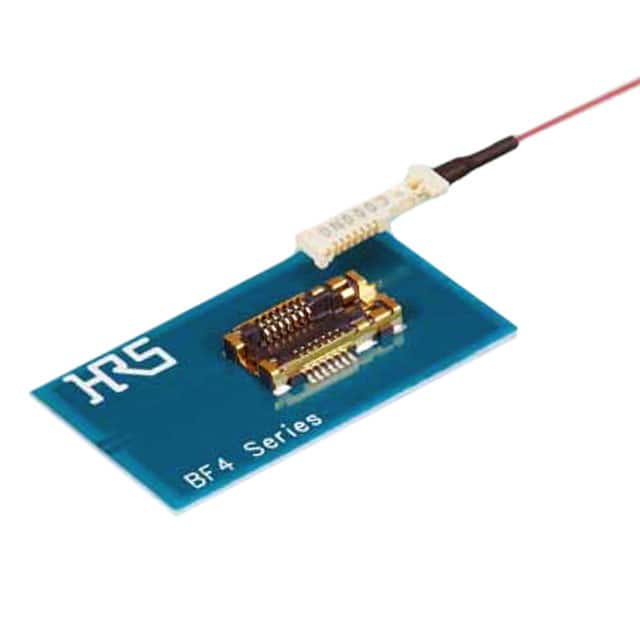

The BF4-TX-14DS-0.5V is a board to board mezzanine connector from Hirose Electric. It offers 14 positions arranged in 2 rows at a compact 0.50mm pitch, making it suitable for high-density interconnections. The connector uses surface mount (SMT) termination for efficient automated assembly. It has gold plated contacts for reliable signal integrity and durability. The connector includes a solder retention feature to enhance mechanical hold on the PCB during and after reflow. The height above board is 1.48mm, fitting tight stacking applications. This connector is designed for board-to-board stacking in a wide range of electronic devices where space saving and reliable signal transmission are required. The product is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). The BF4 series is part of Hirose's narrow pitch connector family optimized for automated assembly and high reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.29 | $10.29 |
| 10+ | $8.74 | $8.74 |
| 25+ | $8.20 | $8.20 |
| 50+ | $7.80 | $7.80 |
| 100+ | $7.43 | $7.43 |
| 250+ | $7.41 | $7.41 |
| 500+ | $7.38 | $7.38 |
| 1,000+ | $7.03 | $7.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 14 positions arranged in 2 rows.
It is surface mount (SMT).
Gold.
1.48mm.
