BF2040 The Infineon BF2040E6814HTSA1 is an N-Channel RF MOSFET designed for high-frequency applications. It features a rated voltage of 8V and operates at frequencies up to 800MHz.
Mfr Part #:

BF2040

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon BF2040E6814HTSA1 is an N-Channel RF MOSFET designed for high-frequency applications. It features a rated voltage of 8V and operates at frequencies up to 800MHz.
✓ Total Stock: 2,005 pcs
$ Price Range: $0.99

BF2040 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,005 pcs
On Request
2005 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BF2040 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current Rating
Frequency
Gain
Mounting Type
Noise Figure
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

BF2040 Description

Short technical summary and product information.

The BF2040E6814HTSA1 from Infineon is an RF MOSFET belonging to the N-Channel FET family. This component is designed for radio frequency applications, operating at frequencies up to 800MHz with a rated voltage of 8V. It offers a gain of 23dB and a noise figure of 1.6dB, making it suitable for signal amplification in RF circuits.

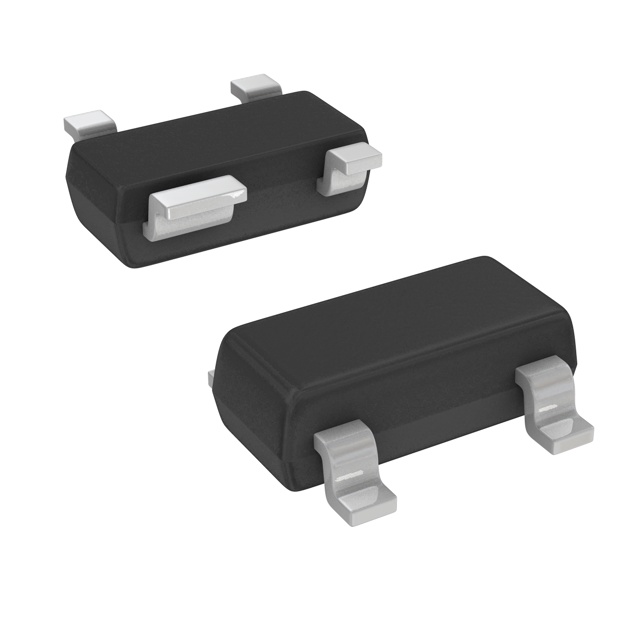

The device is housed in a surface-mount PG-SOT-143-3D package, also referred to as TO-253-4 or TO-253AA. Its surface-mount design facilitates integration into printed circuit boards for automated assembly processes. The component is rated for a current of 40mA and is tested at 5V with 15mA.



This RF MOSFET is part of Infineon's Discrete Semiconductor Products line. It is RoHS3 compliant, indicating adherence to environmental regulations regarding hazardous substances. The Moisture Sensitivity Level (MSL) is 1, signifying unlimited usability under standard conditions, and it is REACH unaffected.

BF2040 Quick Information

Product Type: RF MOSFET
Canonical Name: BF2040E6814HTSA1 RF MOSFET
Subcategory: FETs, MOSFETs

BF2040 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BF2040 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BF2040 Features

  • N-Channel RF MOSFET technology.
  • Operates at frequencies up to 800MHz.
  • Features 23dB gain and 1.6dB noise figure.
  • Surface mount PG-SOT-143-3D package.
  • RoHS3 compliant for environmental standards.

BF2040 Applications

  • Ideal for RF signal amplification.
  • Suitable for high-frequency circuits.
  • Used in radio communication systems.
  • Component for signal processing applications.

BF2040 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated voltage for the BF2040E6814HTSA1?

The rated voltage for the BF2040E6814HTSA1 is 8V.

What is the operating frequency of the BF2040E6814HTSA1?

The BF2040E6814HTSA1 operates at a frequency of 800MHz.

What is the gain of the BF2040E6814HTSA1?

The gain of the BF2040E6814HTSA1 is 23dB.

What is the noise figure for this RF MOSFET?

The noise figure for the BF2040E6814HTSA1 is 1.6dB.

What package type is the BF2040E6814HTSA1 supplied in?

The BF2040E6814HTSA1 is supplied in a PG-SOT-143-3D package, also known as TO-253-4 or TO-253AA.

How is the BF2040E6814HTSA1 mounted?

The BF2040E6814HTSA1 is designed for surface mounting.
