Mfr Part #:

BDY76

Mfr Name: SESCOCEM

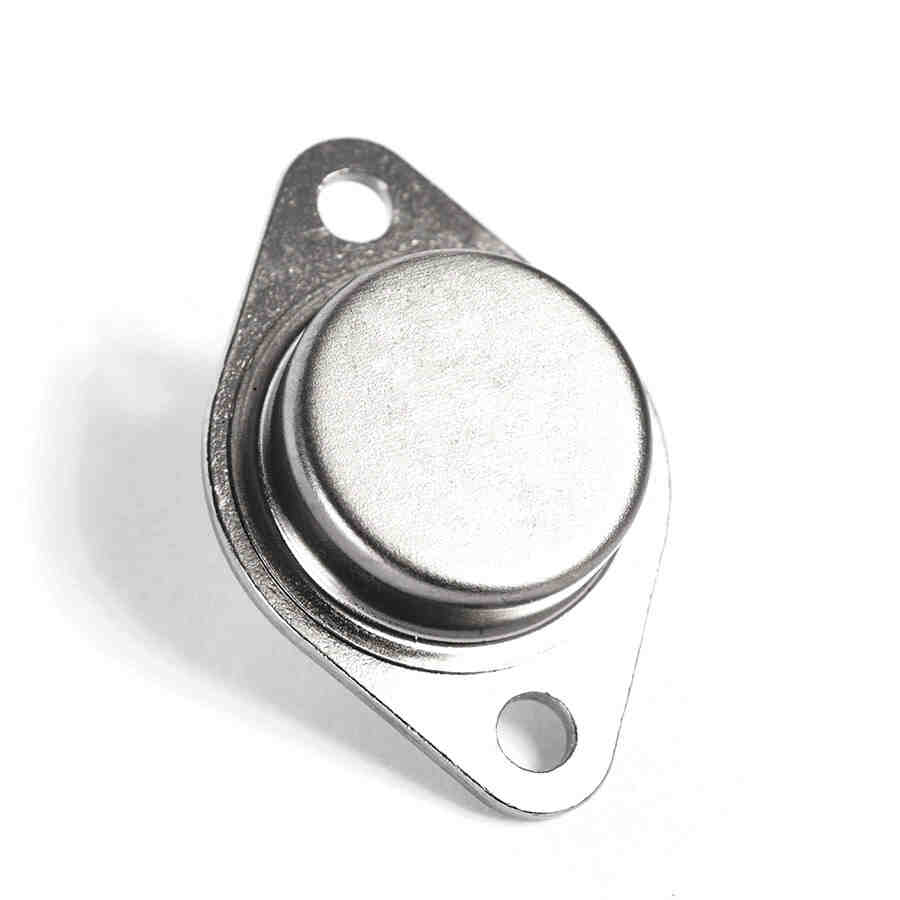

The BDY76 is a Silicon NPN Transistor manufactured by SGS Thomson. It features a maximum collector current of 20A and a maximum collector-emitter voltage of 60V.

✓ Total Stock: 12 pcs

$ Price Range: $1.87

BDY76 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	12 pcs On Request	12 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BDY76 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	SESCOCEM
Junction Temperature	200 °C
Mounting Type	Through Hole
Operating Temperature	175 °C
Power Dissipation	150 W
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

BDY76 Description

Short technical summary and product information.

The BDY76 is a Silicon NPN Transistor from SGS Thomson, designed for special purpose applications. This component is housed in a TO-3 package, indicating its suitability for power handling.

Key electrical specifications include a maximum collector-emitter voltage (Vce) of 60V and a maximum collector current (Ic) of 20A, tested at 10A. The maximum power dissipation (Pd) is rated at 150W. It also offers a minimum forward current transfer ratio (hFE) of 40 and a maximum of 120. The transition frequency (ft) is a minimum of 0.8 MHz at 4.0V.

Thermal characteristics include a maximum operating junction temperature (Tj) of 200°C and a maximum operating temperature (Topr) of 175°C. The power dissipation derates at 854 mW/°C above 25°C.

This transistor is designed for through-hole mounting. Its specifications make it suitable for various power switching and amplification tasks where robust performance is required.

BDY76 Quick Information

Product Type: Transistor

Canonical Name: BDY76 Silicon NPN Transistor

Subcategory: Special Purpose

BDY76 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BDY76 Estimated Pricing

Qty	Low	High
1+	$1.87	$1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

BDY76 Features

NPN Silicon Transistor for special purposes.
Maximum Collector Current: 20A.
Maximum Collector-Emitter Voltage: 60V.
High Power Dissipation: 150W.
TO-3 through-hole package.

BDY76 Applications

Suitable for power switching circuits.
Used in amplification applications.
Designed for demanding environments.
Robust power handling capabilities.

BDY76 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum collector-emitter voltage for the BDY76 transistor?

The maximum collector-emitter voltage (Vce) for the BDY76 transistor is 60V.

What is the maximum continuous collector current for the BDY76?

The maximum continuous collector current (Ic) for the BDY76 is 20A, tested at 10A.

What is the maximum power dissipation of the BDY76 transistor?

The BDY76 transistor has a maximum power dissipation (Pd) of 150W.

What is the operating temperature range for the BDY76?

The maximum operating temperature (Topr) for the BDY76 is 175°C.

What package type is the BDY76 transistor supplied in?

The BDY76 transistor is supplied in a TO-3 package.
