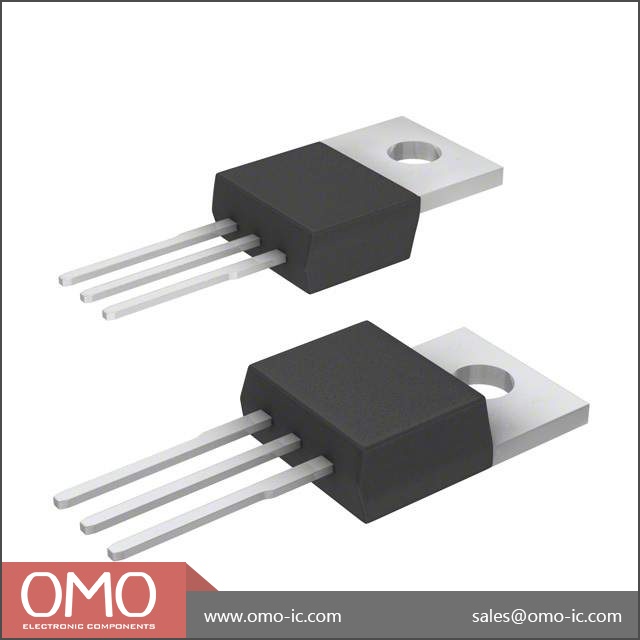

BDX34BG PNP Darlington transistor rated for 80V collector-emitter voltage and 10A continuous collector current. Packaged in a TO-220 through-hole case with 70W power dissipation capability.
Mfr Part #:

BDX34BG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
PNP Darlington transistor rated for 80V collector-emitter voltage and 10A continuous collector current. Packaged in a TO-220 through-hole case with 70W power dissipation capability.
✓ Total Stock: 69 pcs

BDX34BG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
69 pcs
On Request
69 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BDX34BG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Halogen Free
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power
SVHC Present
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

BDX34BG Description

Short technical summary and product information.

The BDX34BG is a PNP Darlington silicon power transistor from onsemi, designed for general purpose and low speed switching applications. It features a high DC current gain (hFE) of 750 minimum at 3A collector current and 3V collector-emitter voltage, and a low collector-emitter saturation voltage of 2.5V maximum at 6mA base current and 3A collector current. The device is rated for a maximum collector-emitter voltage of 80V and continuous collector current of 10A, with a power dissipation of 70W at case temperature 25°C. The monolithic construction includes built-in base-emitter shunt resistors for improved stability. The BDX34BG is housed in a TO-220 through-hole package and is Pb-Free and RoHS compliant. Operating junction temperature range is -65°C to 150°C, with a thermal resistance junction-to-case of 1.78°C/W. Typical applications include power amplification, motor control, relay drivers, and output stages of audio amplifiers.

BDX34BG Quick Information

Product Type: PNP Darlington Transistor
Series: BDX34B
Canonical Name: BDX34BG PNP Darlington Transistor
Subcategory: Darlington Transistor

BDX34BG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BDX34BG Features

  • PNP Darlington transistor for switching applications.
  • Rated for 80V collector-emitter voltage.
  • Continuous collector current up to 10A.
  • High DC current gain of 750 minimum.
  • Pb-Free and RoHS compliant package.

BDX34BG Applications

  • General purpose low speed switching circuits.
  • Suitable for power amplification stages.
  • Used in motor control and relay drivers.
  • Ideal for output stages of audio amplifiers.

BDX34BG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the BDX34BG?

The maximum collector-emitter voltage (VCEO) is 80V.

What is the continuous collector current rating?

The maximum continuous collector current is 10A.

What is the power dissipation of the BDX34BG?

The maximum power dissipation is 70W at case temperature 25°C.

What is the operating temperature range?

The operating junction temperature range is -65°C to 150°C.

What is the DC current gain (hFE) of the BDX34BG?

The minimum DC current gain is 750 at 3A collector current and 3V collector-emitter voltage.

What package does the BDX34BG come in?

The BDX34BG is available in a TO-220 through-hole package.

Is the BDX34BG RoHS compliant?

The datasheet states the device is Pb-Free and RoHS compliant, but this has not been independently verified.
