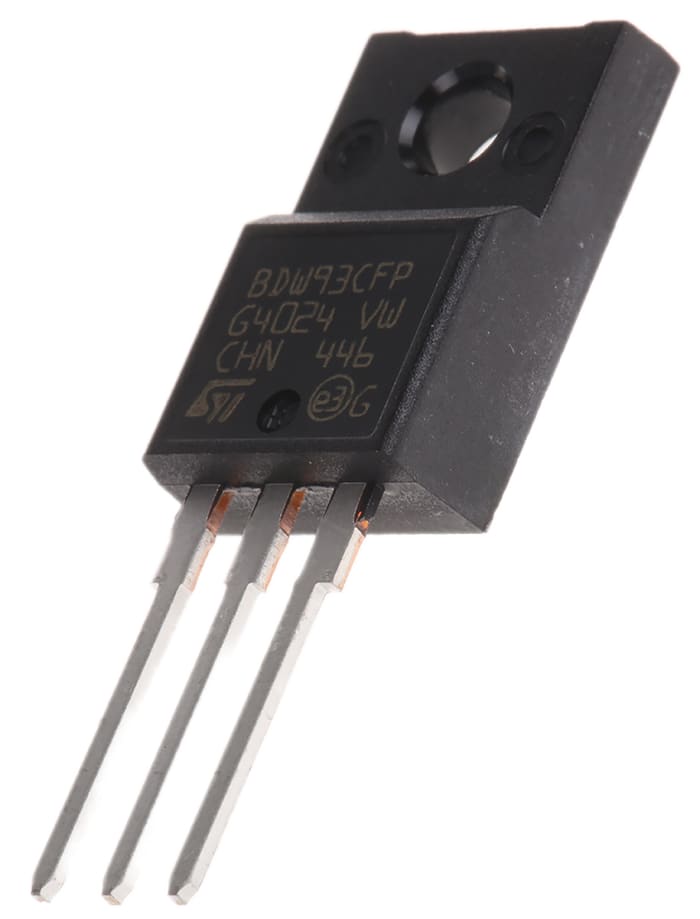

BDW93CFP NPN Darlington transistor, 100V VCEO, 12A continuous collector current, in TO-220FP through-hole package.
Mfr Part #:

BDW93CFP

Available from 6 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
NPN Darlington transistor, 100V VCEO, 12A continuous collector current, in TO-220FP through-hole package.
✓ Total Stock: 25,628 pcs
$ Price Range: $0.62 - $2.38

BDW93CFP Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BDW93CFP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

BDW93CFP Description

Short technical summary and product information.

The BDW93CFP is an NPN Darlington transistor from STMicroelectronics. It features a collector-emitter voltage (VCEO) of 100V and a continuous collector current rating of 12A. The device offers a minimum DC current gain (hFE) of 750 at 5A collector current and 3V VCE, and a maximum VCE saturation voltage of 3V at 100mA base current and 10A collector current. Power dissipation is rated at 33W, with a maximum junction temperature of 150°C. The transistor is housed in a TO-220-3 Full Pack (TO-220FP) package, designed for through-hole mounting. This Darlington configuration provides high current gain, making it suitable for switching and amplification applications requiring moderate voltage and high current handling.

BDW93CFP Quick Information

Product Type: NPN Darlington Transistor
Series: BDW93CFP
Canonical Name: BDW93CFP - NPN Darlington Transistor, 100V VCEO, 12A IC, TO-220FP
Subcategory: Darlington Transistor

BDW93CFP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BDW93CFP Estimated Pricing

Qty Low High
1+ $2.38 $2.38
10+ $1.16 $1.16
100+ $1.04 $1.04
500+ $0.83 $0.83
1,000+ $0.79 $0.79
2,000+ $0.70 $0.70
4,000+ $0.64 $0.64
10,000+ $0.62 $0.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

BDW93CFP Features

  • NPN Darlington transistor with high current gain.
  • Rated for 100V collector-emitter voltage.
  • Continuous collector current up to 12A.
  • Power dissipation of 33W.
  • TO-220FP through-hole package.

BDW93CFP Applications

  • Used in medium-power switching circuits.
  • Suitable for motor control and relay drivers.
  • Ideal for linear amplification stages.
  • Applicable in power supply output stages.

BDW93CFP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the transistor type of BDW93CFP?

NPN Darlington.

What is the collector-emitter voltage rating?

100V.

What is the continuous collector current rating?

12A.

What is the power dissipation?

33W.

What is the operating junction temperature range?

Maximum 150°C.

What is the package type?

TO-220-3 Full Pack (TO-220FP).

Is the BDW93CFP RoHS compliant?

RoHS3 Compliant (unverified).
