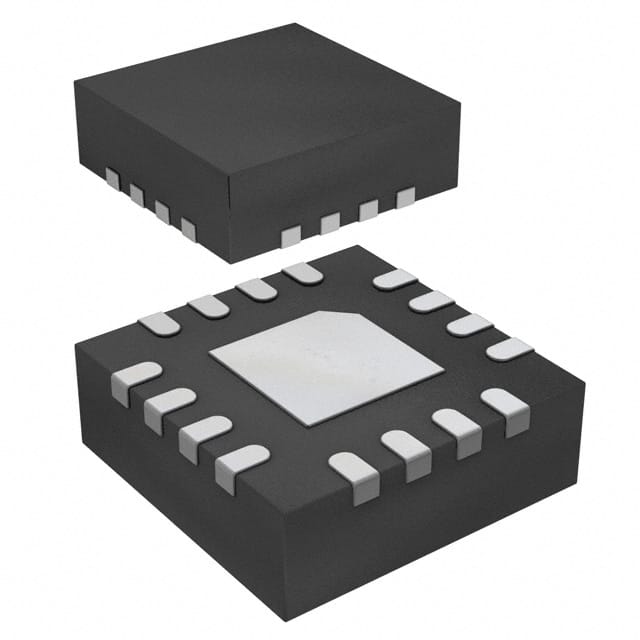

BD9B500MUV-E2 The ROHM Semiconductor BD9B500MUV-E2 is a 5A adjustable output buck switching regulator. It operates at 1MHz or 2MHz and is housed in a 16-VFQFN exposed pad package.
Mfr Part #:

BD9B500MUV-E2

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor BD9B500MUV-E2 is a 5A adjustable output buck switching regulator. It operates at 1MHz or 2MHz and is housed in a 16-VFQFN exposed pad package.
✓ Total Stock: 2,036 pcs
$ Price Range: $0.16

BD9B500MUV-E2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,036 pcs
On Request
2036 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BD9B500MUV-E2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

BD9B500MUV-E2 Description

Short technical summary and product information.

The BD9B500MUV-E2 from ROHM Semiconductor is a high-performance DC-DC switching regulator designed for step-down (buck) conversion. This integrated circuit features an adjustable output voltage and can deliver up to 5A of current, making it suitable for power-hungry applications.



With a selectable switching frequency of 1MHz or 2MHz, the BD9B500MUV-E2 offers flexibility in design, allowing for a balance between efficiency and component size. The device operates with an input voltage starting at 2.7V and is specified for operation across a temperature range of -40°C to 85°C (TA).



The regulator is packaged in a compact 16-VFQFN exposed pad, designed for surface mounting. This package type facilitates efficient heat dissipation and enables compact PCB layouts. The synchronous rectifier design enhances efficiency compared to non-synchronous buck converters.



This component is ideal for applications requiring a stable and efficient power supply with a high current capability. Its adjustable output and dual frequency options provide design engineers with the tools needed for various power management solutions.

BD9B500MUV-E2 Quick Information

Product Type: Switching Regulator
Canonical Name: BD9B500MUV-E2 Buck Switching Regulator
Subcategory: Buck Converter

BD9B500MUV-E2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BD9B500MUV-E2 Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

BD9B500MUV-E2 Features

  • 5A maximum output current capability.
  • Adjustable output voltage configuration.
  • Selectable 1MHz or 2MHz switching frequency.
  • Surface mountable 16-VFQFN exposed pad package.
  • Synchronous rectifier for improved efficiency.

BD9B500MUV-E2 Applications

  • Powering high-current subsystems.
  • Efficient voltage step-down applications.
  • Compact power supply designs.
  • Systems requiring adjustable voltage rails.

BD9B500MUV-E2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the BD9B500MUV-E2?

The BD9B500MUV-E2 can deliver a maximum output current of 5A.

What is the input voltage range for this switching regulator?

The input voltage for the BD9B500MUV-E2 starts at 2.7V.

What are the available switching frequencies for the BD9B500MUV-E2?

The BD9B500MUV-E2 supports switching frequencies of 1MHz and 2MHz.

What is the operating temperature range of the BD9B500MUV-E2?

The operating temperature range is -40°C to 85°C (TA).

What package type is the BD9B500MUV-E2 supplied in?

The BD9B500MUV-E2 is supplied in a 16-VFQFN exposed pad package.

Is the BD9B500MUV-E2 a synchronous buck converter?

Yes, the BD9B500MUV-E2 features a synchronous rectifier.

What is the RoHS status of the BD9B500MUV-E2?

The RoHS status is RoHS3 Compliant.
