| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,522 pcs
|
1522 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Function | |
| Lead Style | |
| Number of Outputs | |
| Output Configuration | |
| Output Type | |
| Topology |

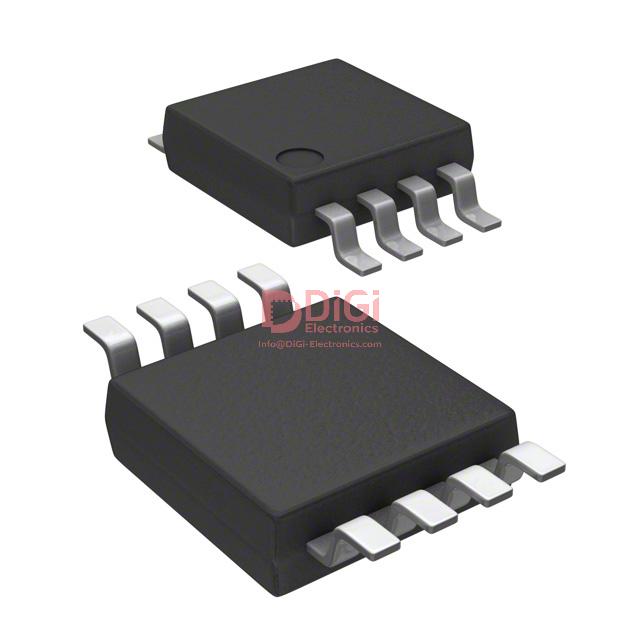

The ROHM Semiconductor BD9106FVM-TR is a versatile step-down (buck) switching regulator IC designed for power management applications. It offers an adjustable output voltage configuration, allowing for flexibility in design. The IC accepts an input voltage range from 4V to 5.5V and can deliver up to 800mA of current.
This component is housed in an 8-VSSOP, 8-MSOP package, suitable for surface-mount applications. Its topology is a buck converter, efficiently stepping down the input voltage to a lower, regulated output.
The BD9106FVM-TR is categorized under Power Management ICs (PMICs) and specifically within Voltage Regulators - DC DC Switching Regulators. Its product status is noted as 'Not For New Designs', suggesting it may be an older or legacy part.
Key electrical specifications include a minimum input voltage of 4V and a maximum of 5.5V, with an adjustable output voltage ranging from 1V to 2.5V. The maximum output current is 800mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4V to 5.5V.
The output voltage is adjustable from 1V to 2.5V.
The maximum output current is 800mA.
The topology is buck (step-down).
It is available in 8-VSSOP and 8-MSOP packages.
