| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
445 pcs
|
445 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Voltage |

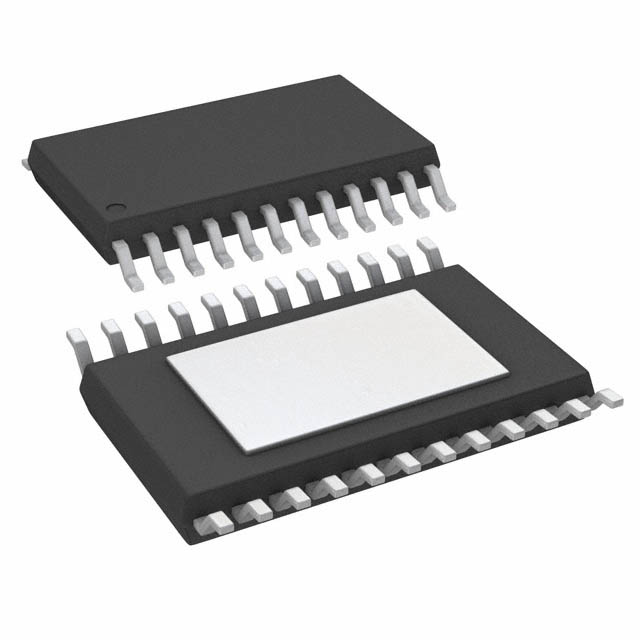

The BD8205EFV-ME2 is a fully integrated motor driver from ROHM Semiconductor, designed for brushed DC motors. It incorporates both control and power stages in a single 24-HTSSOP package. Operating from a 4.3V to 10V supply, it can drive up to five half-bridge outputs.
The driver features a parallel interface for control, and provides output offsets of ±100mV for channels 1-3 and ±50mV for channels 4-5. The typical maximum output range is 6V. It operates over a temperature range of -40°C to +85°C, making it suitable for extended temperature environments.
With its integrated design and small package, it is well-suited for compact applications such as media players where discrete motor control solutions are impractical. The surface-mount package allows for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.3V to 10V.
The operating temperature range is -40°C to +85°C.
It uses a 24-HTSSOP-B package (24-VSSOP with exposed pad).
It has five half-bridge outputs.
It is designed for brushed DC motors.
It uses a parallel interface.
It is a fully integrated driver that combines control and power stage.
