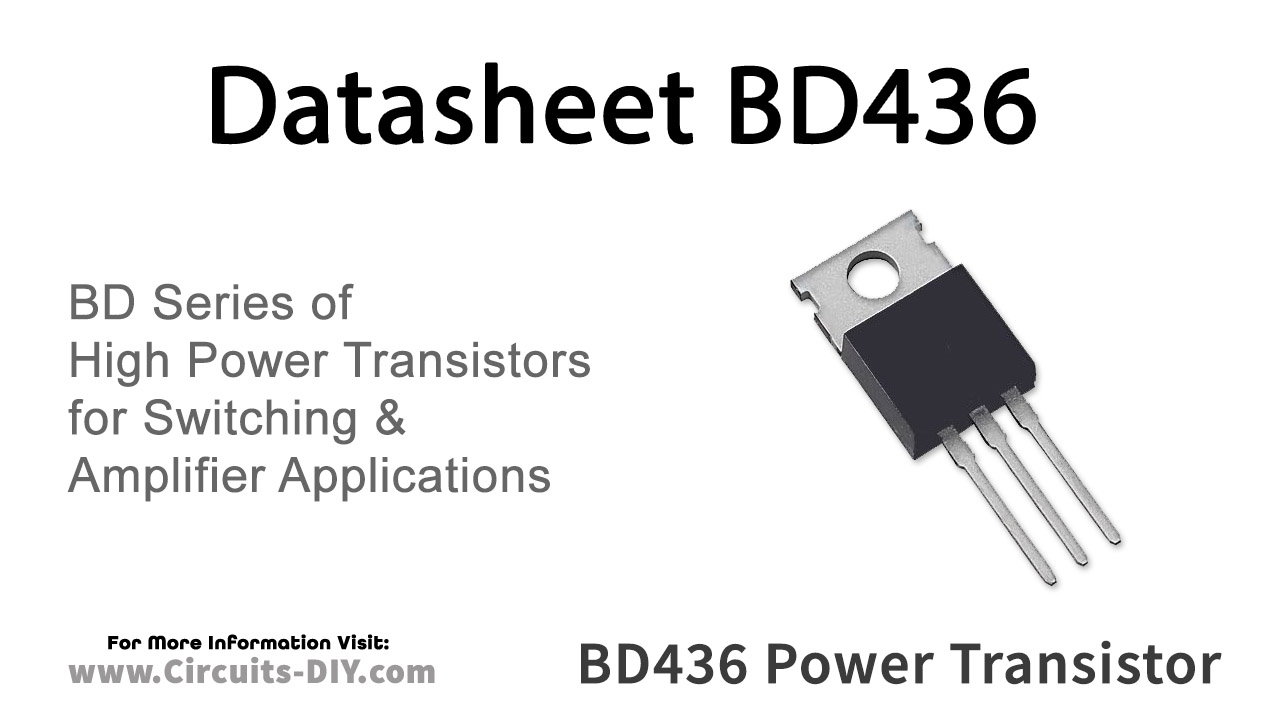

BD436 The BD436 is a PNP power transistor from Luguang Electronic Technology Co Ltd, designed for medium power linear and switching applications. It features a VCEO(SUS) of -32V and a collector current of 4A.
Mfr Part #:

BD436

Available from 1 distributors
Mfr Name: Luguang Electronic Technology Co Ltd
Luguang Electronic Technology Co Ltd
The BD436 is a PNP power transistor from Luguang Electronic Technology Co Ltd, designed for medium power linear and switching applications. It features a VCEO(SUS) of -32V and a collector current of 4A.
✓ Total Stock: 757 pcs
$ Price Range: $0.99

BD436 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
757 pcs
On Request
757 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BD436 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Power Dissipation
SVHC Present
View Similar Products (0)

BD436 Description

Short technical summary and product information.

The BD436 is a silicon epitaxial-base PNP power transistor manufactured by Luguang Electronic Technology Co Ltd. It is housed in a Jedec SOT-32 plastic package, specifically the TO-126 case.



This transistor is intended for use in medium power linear and switching applications. Key electrical specifications include a Collector-Emitter Sustaining Voltage (VCEO(SUS)) of -32V (minimum), a maximum Collector Current (Ic) of 4A, and a Power Dissipation (Pd) of 36W. The DC Current Gain (hFE) typically ranges from 40 to 140 at 3mA collector current, and the transition frequency (FT) is typically 3MHz at 10mA and 5V.



The BD436 is particularly suitable for use in car-radio output stages. Its design emphasizes robust device performance and reliable operation with minimum lot-to-lot variations. The TO-126 package is suitable for through-hole mounting.

BD436 Quick Information

Product Type: PNP Power Transistor
Canonical Name: BD436 PNP Power Transistor
Subcategory: PNP

BD436 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BD436 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BD436 Features

  • PNP silicon epitaxial-base power transistor.
  • Collector-Emitter Sustaining Voltage -32V.
  • Collector Current rating of 4A.
  • Power Dissipation of 36W.
  • TO-126 package for through-hole mounting.

BD436 Applications

  • Used in medium-power switching circuits.
  • Suitable for linear amplifier stages.
  • Ideal for power management modules.
  • Applied in motor control drivers.
  • Works in general purpose power systems.

BD436 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the Collector-Emitter Sustaining Voltage for the BD436 transistor?

-32V

What is the maximum collector current for the BD436 transistor?

4A

What is the power dissipation of the BD436 transistor?

36W

What is the package type for the BD436 transistor?

TO-126

What are the typical DC current gain (hFE) values for the BD436 transistor?

40-140 at 3mA

What is the transition frequency (FT) of the BD436 transistor?

3MHz
