The ROHM Semiconductor BD4275FPJ-CE2 is an automotive-qualified LDO voltage regulator with a 5V fixed output and a 500mA output current capability. This device integrates a voltage detector that generates a reset signal when the output voltage drops below a specific threshold, with a programmable reset delay time.
Key electrical specifications include an input voltage range of -0.3V to 45V, a low quiescent current of 65 μA typical, and a dropout voltage of 0.5V at 300mA. Protection features include Over Current Protection (OCP) and Thermal Shutdown (TSD).

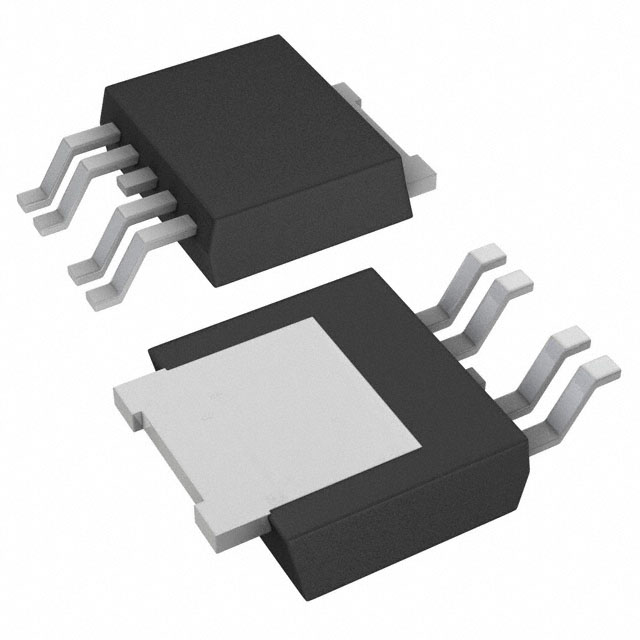

The BD4275FPJ-CE2 is supplied in a TO-252-J5F (TO252AD) surface-mount package, making it suitable for space-constrained applications. Its design is ideal for onboard vehicle devices such as body control modules, car stereos, and navigation systems where low current consumption and reliable voltage regulation are critical.
This regulator is AEC-Q100 qualified, ensuring its suitability for demanding automotive environments. It supports low ESR ceramic capacitors for the output, contributing to stable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 5V.
The operating input voltage range is 5.9V to 45V. The absolute maximum range is -0.3V to 45V.
The typical dropout voltage is 250mV, with a maximum of 0.5V at 300mA load.
The maximum output current is 500mA.
The operating temperature range is -40°C to 125°C.
It is available in a TO252-J5F surface-mount package (also compatible with TO-252-5, DPak).
It includes over-current protection, thermal shutdown, and under-voltage lockout (UVLO).
