| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,421 pcs
|
3421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The ROHM Semiconductor BD4275FP2-CE2 is a linear voltage regulator designed for automotive applications. It provides a fixed 5.0V output voltage with a maximum output current of 500mA.
Key electrical specifications include a wide input voltage range from -0.3V to 45V and a low quiescent current of 65µA typical. Protection features such as Over Current Protection (OCP) and Thermal Shutdown (TSD) are integrated to ensure device reliability.

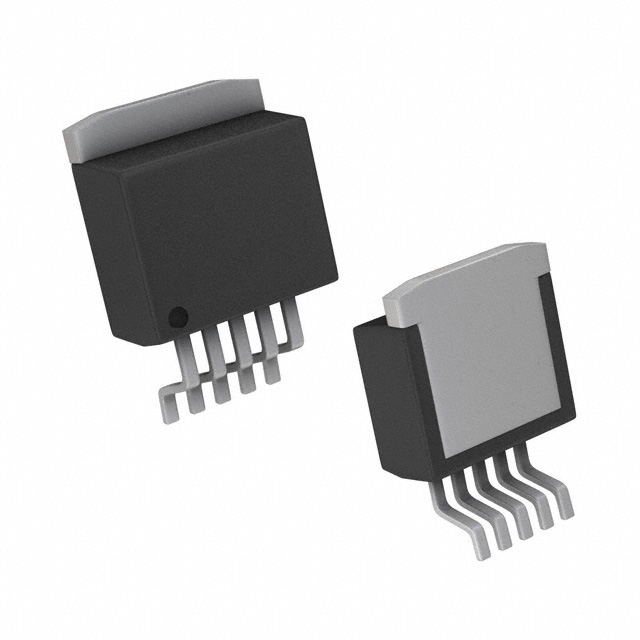

This regulator is supplied in a TO-263-5 surface mount package, making it suitable for various onboard vehicle devices like body control modules, car stereos, and navigation systems. The device is AEC-Q100 qualified, indicating its suitability for demanding automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is -0.3V to 45V.
It is available in a TO-263-6 package (D²Pak with 5 leads and tab), also known as TO-263-5.
The operating temperature range is -40°C to 125°C.
The output voltage is fixed at 5.0V with ±2% tolerance.
The maximum output current is 500mA.
The typical quiescent current is 65µA.
It includes over current protection, thermal shutdown, and under-voltage lockout (UVLO).
