| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,999 pcs
|
1999 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |
The BD3521FVM-TR from ROHM Semiconductor is a single-channel series regulator driver IC designed for linear regulation control. It features a fixed output voltage of 1.5V with a ±1% tolerance. The device operates with a supply voltage ranging from 4.5V to 5.5V and is specified for an operating temperature range of -10°C to 100°C.
Key electrical characteristics include a typical bias current of 0.85mA and a shut down mode current of 0µA. The output voltage is maintained within tight tolerances across varying load conditions, with load regulation specified at -0.5 to 10mV for loads from 0 to 3A. The device incorporates Under-Voltage Lockout (UVLO) for both VCC and VD, ensuring reliable operation.

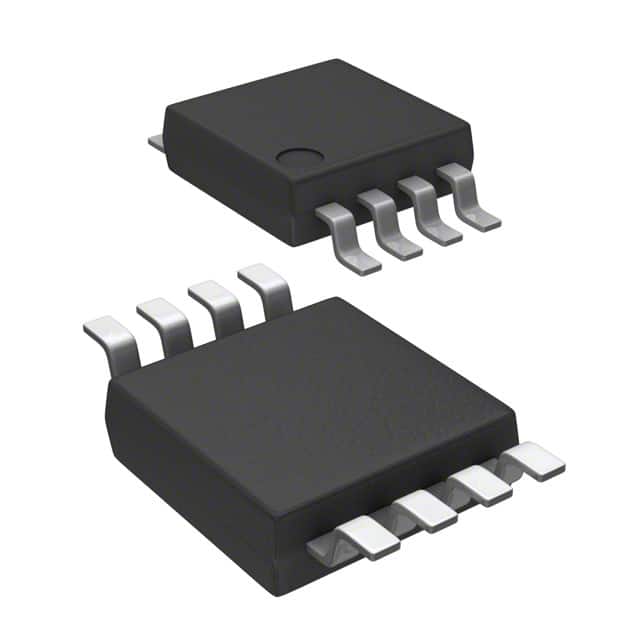

Packaged in an 8-MSOP, the BD3521FVM-TR is suitable for surface mount applications. Its design includes features like Non-Rush Current on Start-up (NRCS) and an N-channel MOSFET driver, making it a versatile component for power management solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BD3521FVM-TR has a fixed output voltage of 1.5V.
The recommended operating supply voltage range is 4.5V to 5.5V.
The BD3521FVM-TR operates within a temperature range of -10°C to 100°C.
The BD3521FVM-TR is supplied in an 8-MSOP package.
Yes, the BD3521FVM-TR is RoHS3 compliant.
