| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
411 pcs
|
411 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |
The BD33KA5WFP-E2 from ROHM Semiconductor is a low-saturation (low-dropout) linear voltage regulator designed for applications requiring stable power delivery up to 500mA. This specific model provides a fixed output voltage of 3.3V with a precision of ±1% (typical for the series).
Key electrical features include a maximum input voltage of 5.5V and built-in protection circuits for overcurrent and thermal shutdown, enhancing device reliability. The regulator is compatible with ceramic capacitors, with a recommended capacitance of 1μF or greater for stability. It also features an ON/OFF shutdown switch, allowing the circuit current to be reduced to 0 μA when not in use.

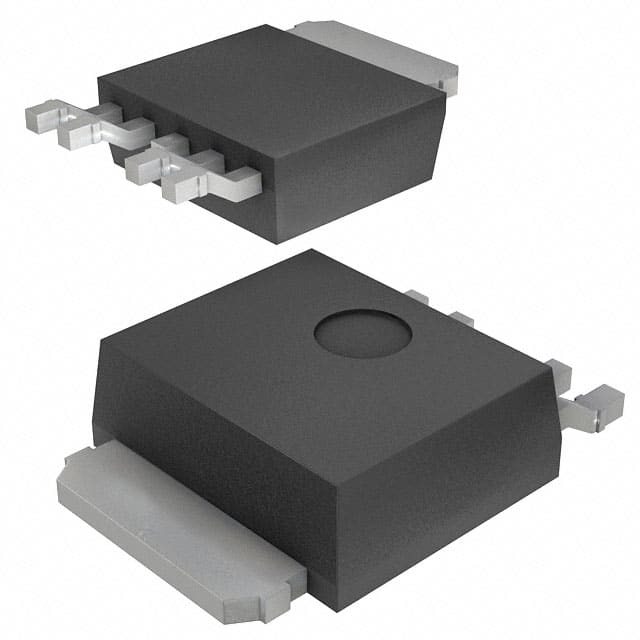

The BD33KA5WFP-E2 is supplied in a TO-252-5 (DPak) surface-mount package, suitable for automated assembly processes. Its operating temperature range is -40°C to +105°C, making it suitable for a variety of environmental conditions. This regulator is ideal for microcontrollers and other electronic devices that utilize logic circuits, offering a reliable and efficient power solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage is 5.5V.
The BD33KA5WFP-E2 is available in a TO-252-5 surface mount package (also known as DPak with 4 leads and tab).
The operating temperature range is -40°C to 105°C.
The output voltage is fixed at 3.3V.
The maximum output current is 500mA.
The typical dropout voltage is 0.12V at 200mA load, with a maximum of 0.2V at 200mA.
The regulator includes over current and over temperature protection.
