| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,959 pcs
|
2959 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Display Type | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The BD26503GUL-E2 is a dot matrix display driver integrated circuit from ROHM Semiconductor. It is designed to drive dot matrix displays such as LED or OLED panels. The device operates from a supply voltage ranging from 2.7V to 5.5V, making it suitable for both 3.3V and 5V systems. Typical current consumption is 2 mA, enabling efficient operation in battery-powered applications.
The driver features both I²C and SPI serial interfaces for communication with a host microcontroller or processor. This allows flexible integration into various control architectures. The operating temperature range of -40°C to 85°C ensures reliable performance across industrial and commercial environments.

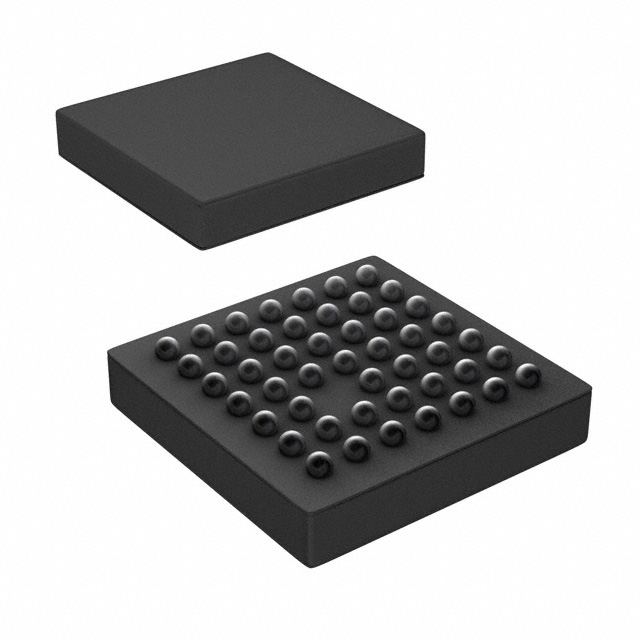

The part is housed in a 48-pin VCSP package, identified by the code 48VCSP50L3. This compact package is ideal for space-constrained designs. As a dot matrix driver, it provides the necessary current and control for driving individual rows and columns of the display matrix.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 5.5V.
-40°C to 85°C.
It supports I²C and SPI interfaces.
Typical current consumption is 2 mA.
It is a dot matrix display driver IC.
