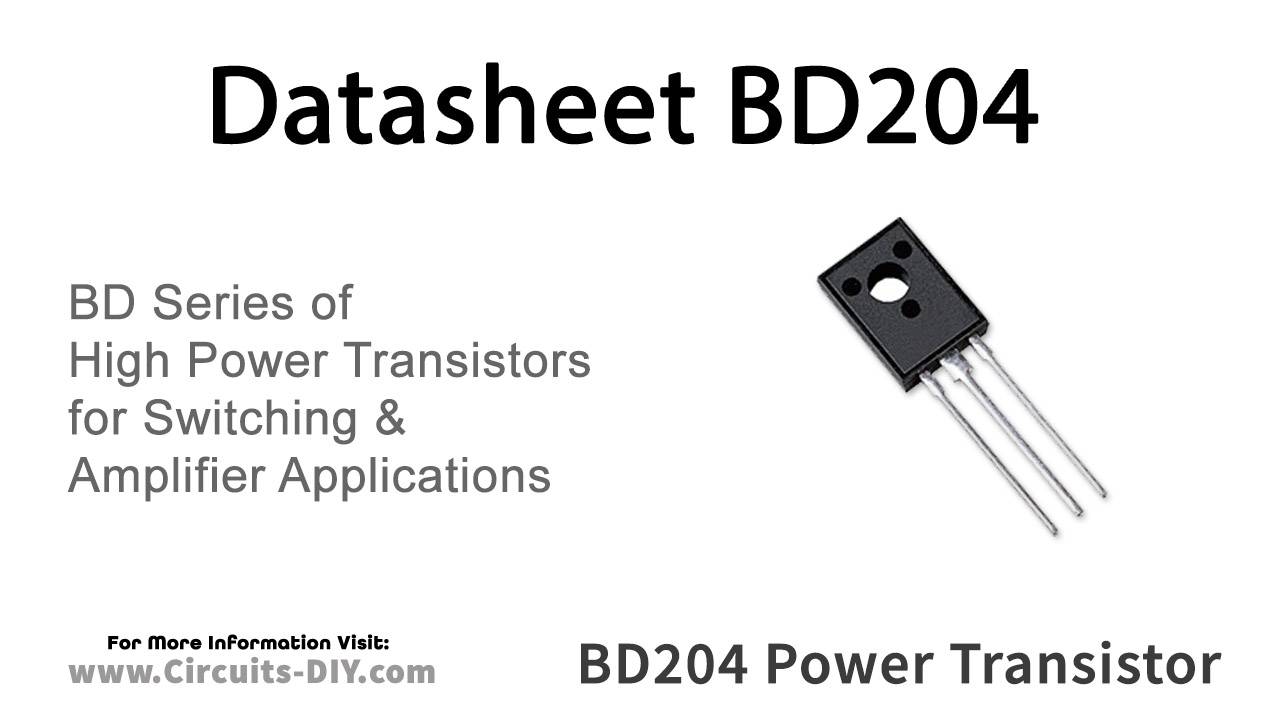

The BD204 is a silicon PNP power transistor manufactured by NXP Semiconductors. It is designed for applications requiring robust performance, such as hi-fi audio equipment delivering 15 to 15 W into a 4 Ω or 8Ω load. This transistor is also suitable for medium power switching and amplifier applications.
Key electrical characteristics include a collector-emitter breakdown voltage of -60V (minimum) and a continuous collector current rating of -8A. The device offers a DC current gain of 30 and a current-gain-bandwidth product of 7 MHz. It also features relatively fast switching times, with a typical turn-on time of 1 μs and a turn-off time of 2 μs.
The BD204 has a maximum collector power dissipation of 60W at 25℃ case temperature and operates within a junction temperature range of -65℃ to 150℃. Thermal resistance from junction to case is 2.08 ℃/W, and from junction to ambient is 70 ℃/W.
This transistor is complementary to the BD201/BD203 types. It is typically supplied in a TO-220 package for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum collector-emitter breakdown voltage for the BD204 is -60V.
The maximum continuous collector current for the BD204 is -8A.
The maximum collector power dissipation for the BD204 at 25℃ case temperature is 60W.
The junction temperature range for the BD204 is -65℃ to 150℃.
The thermal resistance from junction to case for the BD204 is 2.08℃/W.
The typical turn-on time is 1μs and the typical turn-off time is 2μs.
