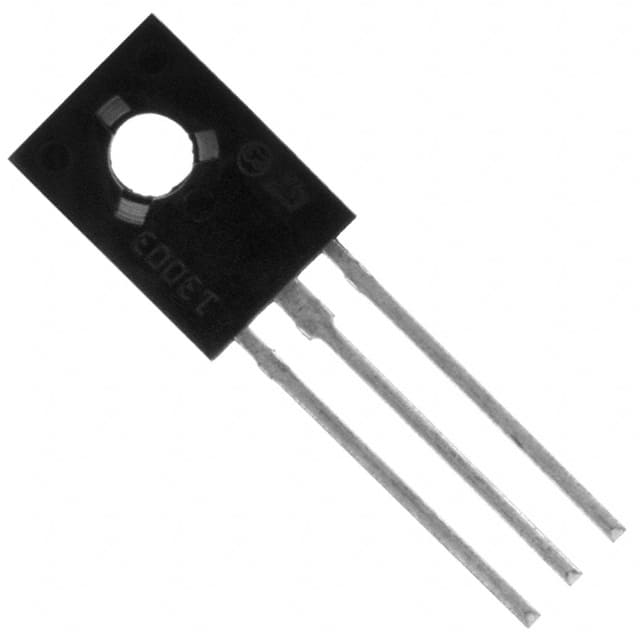

BD135-16 The BD135-16 is an NPN bipolar junction transistor from STMicroelectronics, rated for 45V collector-emitter voltage and 1.5A collector current, with a power dissipation of 1.25W. It comes in a SOT-32 (TO-225AA/TO-126-3) through-hole package.
Mfr Part #:

BD135-16

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The BD135-16 is an NPN bipolar junction transistor from STMicroelectronics, rated for 45V collector-emitter voltage and 1.5A collector current, with a power dissipation of 1.25W. It comes in a SOT-32 (TO-225AA/TO-126-3) through-hole package.
✓ Total Stock: 149,900 pcs
$ Price Range: $0.15 - $0.87

BD135-16 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
82,000 pcs
On Request
82000 pcs On Request 1 On Request On Request 17+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
67,900 pcs
On Request
67900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BD135-16 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

BD135-16 Description

Short technical summary and product information.

The BD135-16 is an NPN bipolar junction transistor manufactured by STMicroelectronics. It is designed for general-purpose switching and amplification applications. The transistor features a collector-emitter voltage (Vce) of 45V and a collector current (Ic) of 1.5A, with a power dissipation of 1.25W. It offers a minimum DC current gain (hFE) of 40 at 150mA collector current and 2V Vce, and a maximum Vce saturation voltage of 500mV at 500mA collector current and 50mA base current.



The device is housed in a SOT-32 package, which is also known as TO-225AA or TO-126-3, and is designed for through-hole mounting. The operating junction temperature range is up to 150°C. The BD135-16 is RoHS3 compliant and has an MSL rating of 1 (unlimited).



This transistor is suitable for a variety of low-power switching and linear applications, including driver stages, signal amplification, and voltage regulation circuits. Its robust electrical characteristics make it a reliable choice for general-purpose use.

BD135-16 Quick Information

Product Type: Bipolar Transistor
Canonical Name: BD135-16 NPN Bipolar Transistor
Subcategory: Single NPN

BD135-16 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BD135-16 Estimated Pricing

Qty Low High
1+ $0.87 $0.87
10+ $0.40 $0.40
100+ $0.35 $0.35
500+ $0.27 $0.27
1,000+ $0.24 $0.24
2,000+ $0.22 $0.22
4,000+ $0.19 $0.19
12,000+ $0.17 $0.17
24,000+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

BD135-16 Features

  • NPN bipolar junction transistor for general purpose.
  • Rated for 45V collector-emitter voltage.
  • Supports 1.5A continuous collector current.
  • Power dissipation of 1.25W.
  • Through-hole SOT-32 package.

BD135-16 Applications

  • Used in low-power switching circuits.
  • Suitable for driver stages in amplifiers.
  • Ideal for general-purpose signal amplification.
  • Can be used in linear voltage regulators.

BD135-16 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the BD135-16?

45V.

What package does the BD135-16 come in?

TO-225AA, TO-126-3, also known as SOT-32, through-hole.

What is the operating temperature range?

Maximum junction temperature is 150°C.

Is the BD135-16 RoHS compliant?

RoHS3 Compliant (unverified).

What is the DC current gain (hFE) of the BD135-16?

Minimum 40 at 150mA collector current and 2V Vce.

What is the saturation voltage?

Maximum 500mV at 500mA collector current and 50mA base current.
