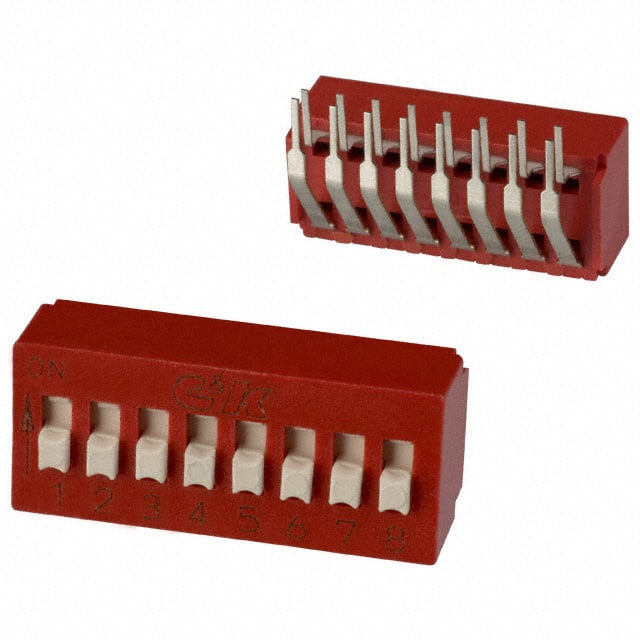

BD08AV The C&K Components BD08AV is a slide-action DIP switch with 8 positions and a Single Pole Single Throw (SPST) configuration. It is designed for through-hole, right-angle mounting.
Mfr Part #:

BD08AV

Available from 3 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components BD08AV is a slide-action DIP switch with 8 positions and a Single Pole Single Throw (SPST) configuration. It is designed for through-hole, right-angle mounting.
✓ Total Stock: 3,252 pcs
$ Price Range: $0.75

BD08AV Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,760 pcs
On Request
2760 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
489 pcs
On Request
489 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BD08AV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Capacitance
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Height Above Board
Insulation Resistance
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

BD08AV Description

Short technical summary and product information.

The C&K Components BD08AV is a standard profile DIP switch from the BD Series, featuring an extended slide actuator for easy operation. It offers an SPST (Single Pole Single Throw) switch function with 8 positions, making it suitable for logic switching and function control applications.



This DIP switch is designed for through-hole mounting with a right-angle orientation. It has a contact rating of 100mA at 5VDC and a mechanical and electrical life of 10,000 make-and-break cycles. The terminals are plated with gold over nickel on phosphor bronze, and the case and cover are made from flame-retardant glass-filled polyester (PBT).



The BD08AV operates within a temperature range of -40°C to 85°C. Its open bottom construction allows for solder washing without the need for a tape seal. This switch is RoHS3 compliant and has an MSL of 1.

BD08AV Quick Information

Product Type: DIP Switch
Series: BD Series
Canonical Name: C&K Components BD08AV SPST Slide DIP Switch
Subcategory: DIP Switches/SIP Switches

BD08AV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BD08AV Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

BD08AV Features

  • 8 position SPST slide DIP switch.
  • Through hole, right angle mounting.
  • 100mA switching current at 5VDC.
  • Extended actuator for easy actuation.
  • RoHS3 compliant and washable construction.

BD08AV Applications

  • Used in electronic control panels
  • Ideal for low-current switching
  • Suitable for PCB mounting
  • Applications requiring multiple switch positions

BD08AV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the BD08AV switch?

The maximum voltage rating is 5V DC.

How many positions does the BD08AV switch have?

It has 8 positions.

What is the contact material used in the BD08AV?

The contact material is phosphor bronze with a gold finish.

What is the operating temperature range of the BD08AV?

It operates within -40°C to 85°C.

What is the mechanical and electrical life of the switch?

It is rated for 10,000 cycles.

What is the package type for the BD08AV?

It comes in a DIP package.

Is the BD08AV RoHS compliant?

Yes, it is RoHS3 compliant.
