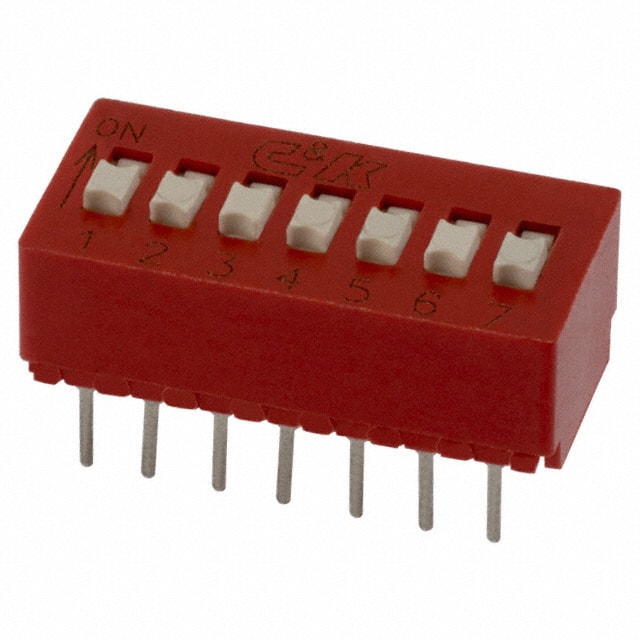

The C&K Components BD07 is a standard profile DIP switch designed for function controlling, logic switching, and industrial control address applications. It features an extended slide actuator for easy actuation and an open bottom construction that allows for solder washing without the need for a tape seal.
This SPST switch offers 7 positions and a contact rating of 100mA at 5VDC, with a maximum carry current of 100mA at 50VDC. The contacts are gold over nickel over phosphor bronze, and the terminals are matte-tin over nickel over phosphor bronze. The case and cover are made of glass-filled polyester (PBT), flame retardant (UL 94V-0), and the actuator is glass-filled nylon 6/6, flame retardant, heat stabilized (UL 94V-0).
With a pitch of 2.54mm (0.100"), the BD07 is designed for through-hole mounting and features PC pin termination. It operates within a temperature range of -40°C to 85°C and has a mechanical and electrical life of 10,000 make-and-break cycles. The switch is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BD07 switch operates at 5VDC.
The BD07 switch has 7 positions.
The contact rating is 100mA at 5VDC, 25mA at 25VDC, and 100mA at 50VDC.
The switch has a mechanical and electrical life of 10,000 cycles.
Contacts are made of phosphor bronze with a gold finish; terminals are matte-tin over nickel over phosphor bronze.
The operating temperature range is -40°C to 85°C.
