| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Material | |
| Actuator Type | |
| Capacitance | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

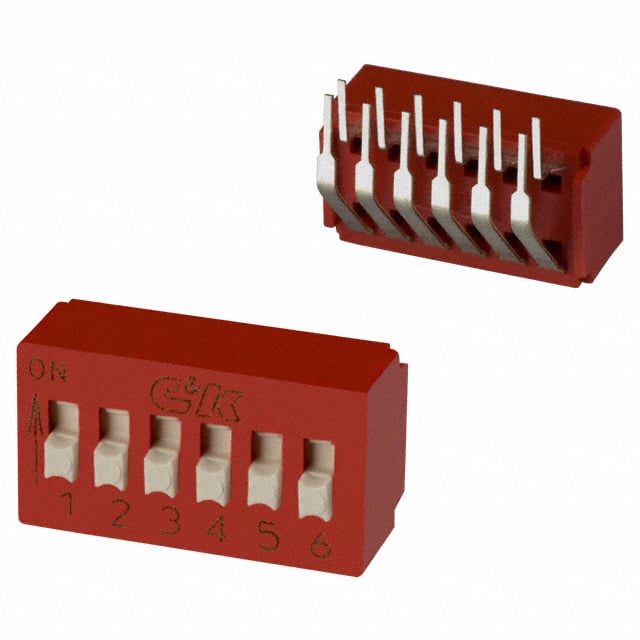

The C&K Components BD06AV is a standard profile DIP switch from the BD Series. It features an extended actuator for easy actuation and an open bottom construction that allows for solder washing without the need for a tape seal.
This SPST switch offers 6 positions and is designed for applications such as function controlling, logic switching in computers and peripherals, and industrial control address switches. It has a contact rating of 100mA at 5VDC and a mechanical and electrical life of 10,000 make-and-break cycles.
The BD06AV is mounted via Through Hole, Right Angle termination style with PC pins. The case and cover are made of glass-filled polyester (PBT), flame retardant (UL 94V-0), and the actuator is glass-filled nylon 6/6, flame retardant, heat stabilized (UL 94V-0). The contacts are gold over nickel over phosphor bronze, and the terminals are matte-tin over nickel over phosphor bronze.
Environmental specifications include an operating temperature range of -40°C to 85°C. The switch is RoHS3 Compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BD06AV switch has a voltage rating of 5VDC.
The BD06AV has six positions.
The contact rating is 100mA at 5VDC and 25mA at 25VDC.
The contact finish is gold over nickel over phosphor bronze.
It supports 10,000 cycles.
-40°C to 85°C.
