| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Material | |
| Actuator Type | |
| Body Material | |
| Capacitance | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

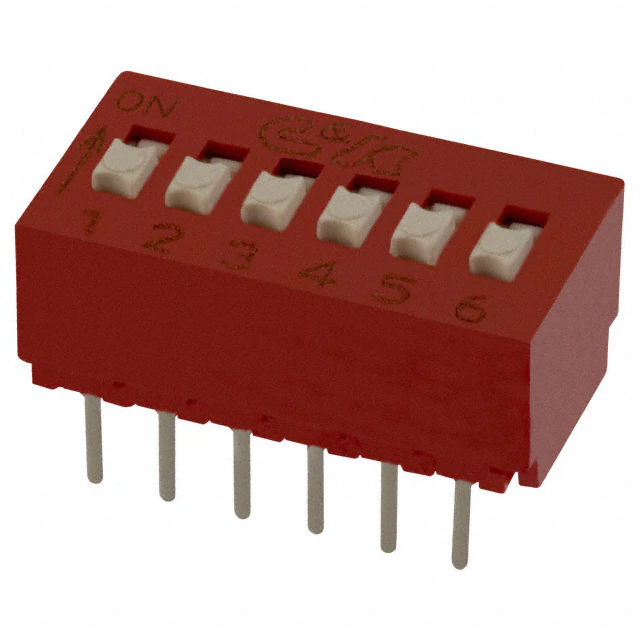

The C&K Components BD06 is a standard profile DIP switch from the BD Series. It offers a Single Pole Single Throw (SPST) configuration with 6 positions, suitable for applications like logic switching in computers and peripherals, and industrial control address switches.
This switch features a slide actuator with a raised level for easy actuation. The contact material is gold-plated phosphor bronze, ensuring reliable connections. It is designed for through-hole mounting with a pitch of 0.100" (2.54mm) and has a height above the board of 0.297" (7.54mm). The switch is washable, allowing for solder washing without a tape seal.
Key electrical specifications include a current rating of 100mA at 5VDC and a voltage rating of 5VDC. The operating temperature range is -40°C to 85°C. The body is constructed from glass-filled PBT, and the actuator is made of glass-filled nylon 6/6, both flame retardant.
Applications include function controlling, logic switching in computers and peripherals, and industrial control address switches. The BD06 is designed for 10,000 make-and-break cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The C&K BD06 is a Single Pole Single Throw (SPST) switch with 6 positions.
The C&K BD06 DIP switch is rated for 100mA at 5VDC.
The operating temperature range for the C&K BD06 switch is -40°C to 85°C.
The C&K BD06 DIP switch is designed for through-hole mounting.
The C&K BD06 DIP switch features a gold contact finish.
Yes, the C&K BD06 DIP switch is washable.
