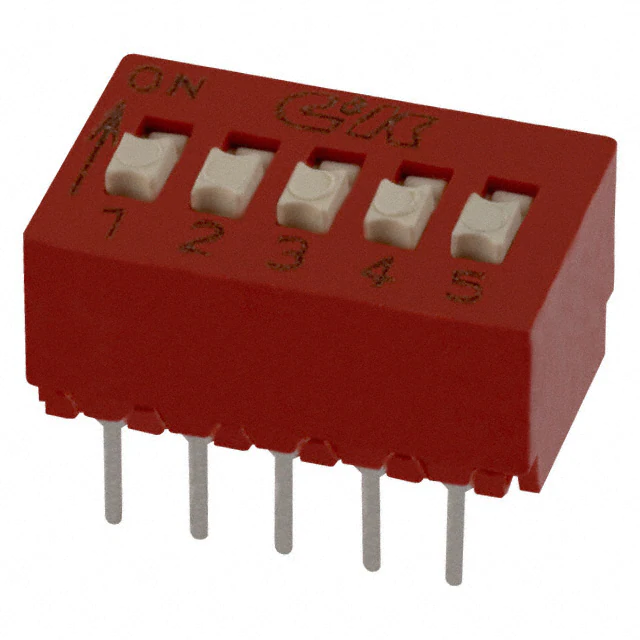

The C&K Components BD05 is a standard profile DIP switch featuring an extended actuator for easy actuation and an open bottom construction that allows for solder washing without the need for a tape seal. This switch is designed for function controlling, logic switching in computers and peripherals, and industrial control address switches.
Key electrical specifications include a Single Pole Single Throw (SPST) circuit with 5 positions, a contact rating of 100mA at 5VDC, and a voltage rating of 5VDC. The switch offers a contact resistance below 50 milliohms typically and an insulation resistance greater than 1 Gohms. It has a mechanical and electrical life of 10,000 make-and-break cycles.
Mechanically, the BD05 features a through-hole mounting type with PC pin termination. The pitch is 2.54mm (0.100"), and the height above the board is 0.297" (7.54mm). The actuator type is a standard slide with a raised level. The body is constructed from glass-filled PBT, and the actuator from glass-filled nylon 6/6, both flame retardant.
Environmental specifications include an operating temperature range of -40°C to 85°C. The switch is RoHS3 Compliant and has an MSL of 1 Unlimited. It is suitable for applications requiring logic switching, function control, and address switching in industrial controls, computers, and peripherals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BD05 has an SPST (Single Pole Single Throw) switch function.
The BD05 has a voltage rating of 5VDC.
The contact rating is 100mA at 5VDC.
The mechanical life is rated at 10,000 make-and-break cycles.
The operating temperature range is from -40°C to 85°C.
Yes, it is RoHS3 compliant.
