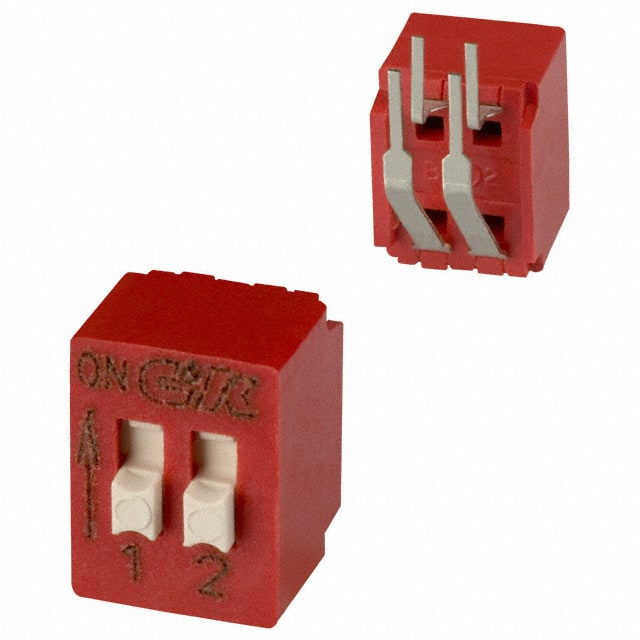

BD02AV The C&K Components BD02AV is a standard profile DIP switch with a raised slide actuator. It offers SPST switching for 2 positions.
Mfr Part #:

BD02AV

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components BD02AV is a standard profile DIP switch with a raised slide actuator. It offers SPST switching for 2 positions.
✓ Total Stock: 792 pcs
$ Price Range: $0.75

BD02AV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
792 pcs
On Request
792 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BD02AV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Capacitance
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Height Above Board
Insulation Resistance
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

BD02AV Description

Short technical summary and product information.

The C&K Components BD02AV is a standard profile DIP switch designed for function controlling and logic switching applications. It features an extended, raised slide actuator for easy actuation and an open bottom construction that allows for solder washing without the need for a tape seal.



This switch has a Single Pole Single Throw (SPST) configuration with 2 positions. It is rated for 100mA at 5VDC and has a contact resistance of typically below 50 milliohms. The operating temperature range is -40°C to 85°C.



The BD02AV is constructed with a glass-filled polyester (PBT) case and cover, and a glass-filled nylon 6/6 actuator. The contacts are made of gold over nickel over phosphor bronze, and the terminals are matte-tin over nickel over phosphor bronze. It is designed for through-hole, right-angle mounting with PC pin termination.



This RoHS3 compliant switch is suitable for applications in computers, peripherals, and industrial control address switching.

BD02AV Quick Information

Product Type: DIP Switch
Series: Standard Profile
Canonical Name: C&K Components BD Series Standard Profile DIP Switch
Subcategory: Standard Profile

BD02AV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BD02AV Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

BD02AV Features

  • SPST switch with 2 positions.
  • Rated for 100mA at 5VDC.
  • Raised slide actuator for easy use.
  • Through Hole, Right Angle mounting.
  • RoHS3 compliant construction.

BD02AV Applications

  • Manual circuit switching in electronic devices
  • Used in control panels and instrumentation
  • Suitable for consumer electronics
  • Ideal for applications requiring durable mechanical operation

BD02AV FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating of the BD02AV switch?

The contact rating is 100mA.

What is the voltage rating of the BD02AV?

The voltage rating is 5VDC.

What is the operating temperature range for the BD02AV?

The operating temperature range is -40°C to 85°C.

Is the BD02AV RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.

What is the mechanical life cycle of the switch?

It has a mechanical and electrical life of 10,000 cycles.
