| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,100 pcs
|
4100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage |
The ROHM Semiconductor BD00GA3MEFJ-ME2 is a silicon monolithic integrated circuit designed as a 300mA LDO regulator. It offers a variable output voltage that can be set from 1.5V to 13.0V using external resistance, with an output accuracy of ±1%. The device operates with an input power supply voltage range of 4.5V to 14.0V.
Key features include built-in Over Current Protection (OCP) and Thermal Shutdown (TSD) circuits to protect the IC from damage. It also incorporates a shutdown switch for setting the circuit to 0 μA in shutdown mode. The regulator is suitable for use with ceramic capacitors, contributing to smaller set sizes and longer product life.

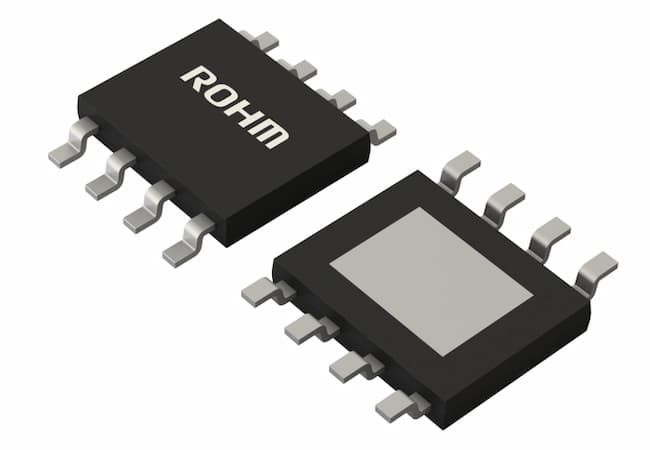

Packaged in an HTSOP-J8 surface mount package, the BD00GA3MEFJ-ME2 is designed for applications requiring stable voltage regulation. Its operating temperature range is -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 14V.
The output voltage range is 1.5V to 13V (variable type).
The maximum output current is 0.3A.
The operating temperature range is -40°C to +105°C.
The package type is HTSOP-J8 with dimensions 4.90mm x 6.00mm x 1.00mm.
The output accuracy is ±1% of the output voltage.
The shutdown current is 0μA (typical).
