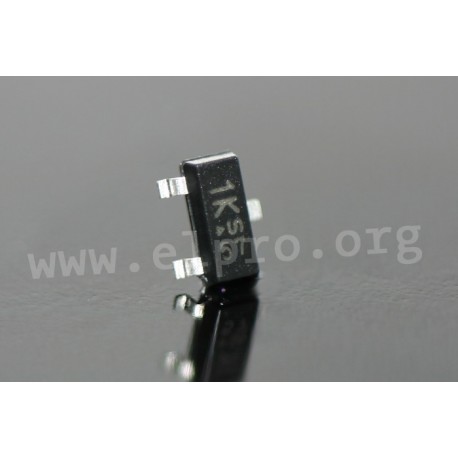

The BCW33LT1G is an NPN silicon general purpose transistor from On Semiconductor. It offers a maximum collector-emitter voltage of 32 V and a continuous collector current of 100 mA. The DC current gain (hFE) is specified between 420 and 800 at a test condition of IC=2 mA, VCE=5 V. The collector-emitter saturation voltage is a maximum of 250 mV at IC=10 mA, IB=0.5 mA.
Designed for general purpose amplification and switching applications, this transistor features low output capacitance of 4.0 pF and a noise figure of 10 dB under typical conditions. Power dissipation is rated at 300 mW on alumina substrate and 225 mW on FR-5 board, with corresponding thermal resistances of 417 °C/W and 556 °C/W. The operating junction temperature range is -55°C to 150°C.
The device is housed in a surface-mount SOT-23-3 (TO-236) package. It is supplied in tape and reel packaging with 3000 units per reel. The BCW33LT1G is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.11 | $0.11 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) is 32 V.
It comes in an SOT-23-3 (TO-236) surface mount package.
The junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free.
The hFE ranges from 420 to 800 at IC=2mA, VCE=5V.
The maximum VCE(sat) is 250 mV at IC=10mA, IB=0.5mA.
300 mW on alumina substrate and 225 mW on FR-5 board at 25°C.
