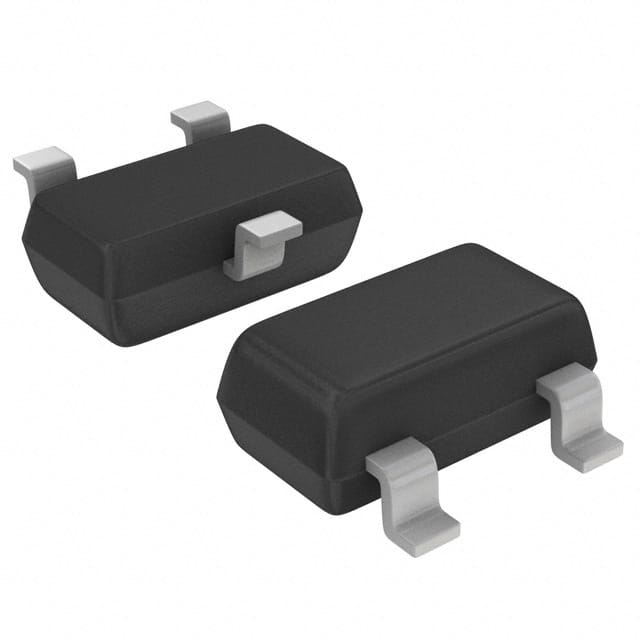

The BCW30 is a PNP bipolar junction transistor designed for general purpose medium power amplification and switching. It is manufactured by On Semiconductor (formerly Fairchild Semiconductor). This device is suitable for applications requiring collector currents up to 300mA.
Key electrical specifications include a maximum collector-emitter voltage (VCEO) of -32V, continuous collector current of -500mA, and a DC current gain (hFE) of 215 minimum at Vce = -5V, Ic = -2mA. The collector-emitter saturation voltage is typically -0.3V at Ib = -0.5mA, Ic = -10mA. The noise figure is 10 dB maximum at 1kHz.
The transistor is housed in a SOT-23-3 surface mount package, also known as TO-236-3 or SC-59. It has a maximum power dissipation of 350 mW and an operating junction temperature range of -55°C to +150°C. The thermal resistance from junction to ambient is 357°C/W.
This device is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is designed for general purpose amplification and switching applications in consumer, industrial, and automotive electronics where surface mount assembly is required.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.04 | $0.04 |
| 6,000+ | $0.03 | $0.03 |
| 9,000+ | $0.03 | $0.03 |
| 15,000+ | $0.03 | $0.03 |
| 21,000+ | $0.03 | $0.03 |
| 30,000+ | $0.03 | $0.03 |
| 75,000+ | $0.02 | $0.02 |
| 150,000+ | $0.02 | $0.02 |
| 300,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-32V (VCEO).
SOT-23-3 (also TO-236-3, SC-59).
-55°C to +150°C (junction temperature).
Yes, it is marked as RoHS3 compliant (unverified).
Minimum 215 at Vce = -5V, Ic = -2mA.
10 dB maximum at 1kHz.
350 mW.
