| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Quiescent Current | |
| SVHC Present |

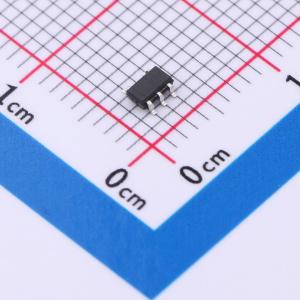

The BCT2038EUK33-TR from BROADCHIP is a low-power, low-dropout CMOS linear voltage regulator designed for low-voltage, low-power applications. It operates within a voltage range of 1.6V to 5.5V and can deliver an output current of up to 500mA.
Key electrical characteristics include a 1.8V fixed output voltage, a low quiescent current of 20uA, and a low dropout voltage of 670mV at 500mA. The device also features high Power Supply Ripple Rejection (PSRR) of 70dB at 1kHz and low output noise of 100uVrms, making it suitable for noise-sensitive applications like RF circuits.
Additional features include enable control, short circuit protection, over current protection, output discharge, and thermal shutdown. The regulator is available in a compact SOT-23-5 surface-mount package and operates across a wide temperature range of -40°C to +85°C.
This series is ideal for battery-powered systems due to its low ground current and extended battery life from its low dropout voltage. The automatic output discharge function quickly discharges VOUT when disabled.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BCT2038EUK33-TR has a fixed output voltage of 1.8V.
The BCT2038EUK33-TR can provide an output current of up to 500mA.
The working voltage range for the BCT2038EUK33-TR is from 1.6V to 5.5V.
The dropout voltage is 670mV at a load of 500mA.
The quiescent current is typically 20uA.
The device operates in a temperature range of -40°C to +85°C.
It is supplied in a SOT-23-5 package for surface mounting.
