Mfr Part #:

BCS75US13-C

Mfr Name: XP Power

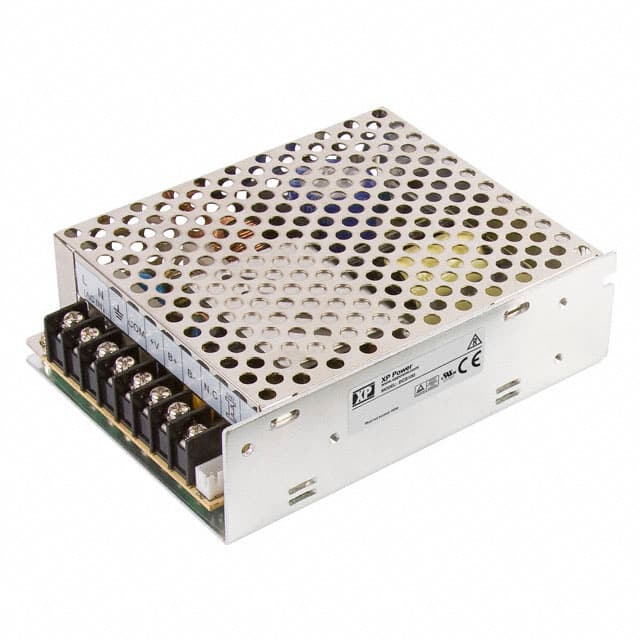

The XP Power BCS75US13-C is a 75W AC/DC converter with dual 13.8V outputs. It features a universal input voltage range and chassis mount.

Stock on Request

BCS75US13-C Description

Short technical summary and product information.

The XP Power BCS75US13-C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 75W of power with two 13.8V outputs.

Key electrical specifications include a wide input voltage range of 90-264 VAC and an efficiency of 86%. The converter offers adjustable output voltage with ±10% trim and features overvoltage, overload, and short circuit protection on all outputs. It operates within a temperature range of -20°C to 70°C.

Designed for chassis mounting, this unit provides essential features like DC input capability and universal input. Its dimensions are 129.5mm x 97.5mm x 37.5mm, making it suitable for various integration needs.

BCS75US13-C Quick Information

Product Type: AC DC Converter

Series: BCS Series

Canonical Name: XP Power BCS Series AC/DC Converter, 75W, 2 x 13.8V

Subcategory: AC DC Converters

BCS75US13-C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BCS75US13-C Features

75W total power output.
Dual 13.8V output voltages.
Universal input voltage range (90-264 VAC).
Chassis mountable enclosed type.
Wide operating temperature range (-20°C to 70°C).

BCS75US13-C Applications

Suitable for commercial ITE (Information Technology Equipment).
Ideal for industrial control systems requiring dual supply.
Used in telecom equipment where 13.8V is common.
Applicable in test and measurement systems.

BCS75US13-C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the BCS75US13-C?

90-264 VAC (120-370 VDC).

What are the package dimensions and mounting type?

Chassis mount, dimensions 129.5mm x 97.5mm x 37.5mm.

What is the operating temperature range?

-20°C to 70°C with derating.

What is the efficiency of this converter?

86% typical.

How many outputs does it have?

2 outputs at 13.8V each.

What protections are included?

Overvoltage protection on output 1 (115-150%). Overload protection: output 1 >110% total rated power, output 2 100-115% of max current. Short circuit protection on all outputs with auto recovery.

What is the hold-up time?

8 ms minimum at 115 VAC.

Category	AC DC Converters
Manufacturer Name	XP Power
Applications	ITE (Commercial)
Current	1.95 A
Efficiency	86%
Features	Adjustable Output, DC Input Capable, Universal Input
Height	37.5mm (1.47")
Input Frequency	47-63 Hz
Input Voltage	90-264 VAC
Isolation	3000 VAC Input to Output, 1500 VAC Input to Ground, 500 VAC Output to Ground
Length	129.5mm (5.09")
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature	-20°C ~ 70°C (With Derating)
Overload Protection	Output1: >110% of total rated power, Output2: 100-115% of max current, Output3: >3.3 A
Power (Watts)	75W
Storage Temperature	-40°C to +85°C
Type	Enclosed
Voltage	13.8V
Width	97.5mm (3.83")
