Mfr Part #:

BCR400W

Mfr Name: Infineon

The Infineon BCR400W is an active bias controller designed to supply stable bias current. It features a low voltage drop and is suitable for stabilizing bias current of NPN transistors and FETs.

✓ Total Stock: 3,539 pcs

$ Price Range: $0.20

BCR400W Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,539 pcs On Request	3539 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BCR400W Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Junction Temperature	150 °C
Mounting Type	Surface Mount
Reverse Voltage	0.5 V
Storage Temperature	-65 to 150 °C
Voltage	18 V

View Similar Products (0)

BCR400W Description

Short technical summary and product information.

The Infineon BCR400W is an active bias controller designed to provide a stable bias current across varying battery voltages and ambient temperatures. It is particularly useful for stabilizing the bias current of NPN transistors and FETs, with applications ranging from less than 0.2mA up to more than 200mA.

Key electrical characteristics include a maximum source voltage of 18V and a maximum control current of 10mA. The device exhibits a low voltage drop of 0.65V at 25mA collector current. It also offers a low quiescent current of 20-40µA at 3V source voltage and a minimum stabilizing current of 0.1mA.

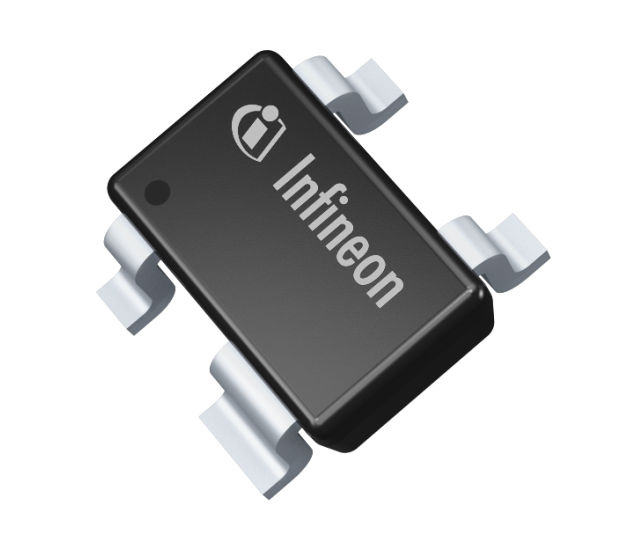

The BCR400W is housed in a SOT343 package and is suitable for surface mount applications. Its ability to maintain stable bias current makes it an ideal supplement for various transistor types and can also function as a current source up to 5mA.

This component is qualified according to AEC Q101, indicating its suitability for demanding applications. The Pb-free (RoHS compliant) package is standard, with Pb-containing options available upon special request.

BCR400W Quick Information

Product Type: Active Bias Controller

Series: BCR

Canonical Name: BCR400W Active Bias Controller

Subcategory: LED Drivers

BCR400W Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BCR400W Estimated Pricing

Qty	Low	High
1+	$0.20	$0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

BCR400W Features

Supplies stable bias current.
Low voltage drop of 0.7V.
Stabilizes bias current for NPN transistors and FETs.
Usable as current source up to 5mA.
Qualified according to AEC Q101.

BCR400W Applications

Ideal for stabilizing bias current.
Supplement for Sieget and other transistors.
Used as a current source.
Suitable for low battery voltage applications.

BCR400W FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum source voltage for the BCR400W?

The maximum source voltage for the BCR400W is 18V.

What is the package type for the BCR400W?

The BCR400W is available in a SOT343 package.

What is the typical additional current consumption of the BCR400W?

The typical additional current consumption of the BCR400W is 20µA at 3V source voltage.

What is the lowest stabilizing current for the BCR400W?

The lowest stabilizing current for the BCR400W is 0.1mA at 3V source voltage.

What is the voltage drop of the BCR400W at 25mA?

The voltage drop of the BCR400W at 25mA collector current is 0.65V.
