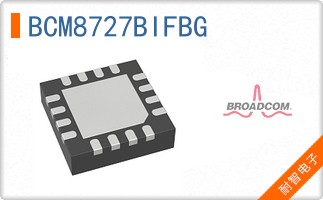

BCM8727BIFBG The Broadcom BCM8727BIFBG is a dual-channel 10-GbE SFI-to-XAUI transceiver with integrated EDC. It supports data rates up to 10.3125 Gbps and operates with 1.0V core and 3.3V I/O supplies.
Mfr Part #:

BCM8727BIFBG

Available from 3 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
The Broadcom BCM8727BIFBG is a dual-channel 10-GbE SFI-to-XAUI transceiver with integrated EDC. It supports data rates up to 10.3125 Gbps and operates with 1.0V core and 3.3V I/O supplies.
✓ Total Stock: 4,844 pcs

BCM8727BIFBG Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
327 pcs
On Request
327 pcs On Request 1 On Request On Request 16+17+19+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM8727BIFBG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Interface
Power Dissipation
View Similar Products (0)

BCM8727BIFBG Description

Short technical summary and product information.

The Broadcom BCM8727BIFBG is a dual-channel 10-GbE SFI-to-XAUI transceiver designed for high-density Ethernet switching and routing platforms, and next-generation blade servers. It features integrated Electronic Dispersion Compensation (EDC) and supports SFP+ SR, LR, and LRM optical interfaces, as well as direct attached copper up to 15 meters.



This transceiver operates at a data rate of 10.3125 Gbps for the serial interface and 3.125 Gbps for the 4-lane XAUI interface. It requires a 1.0V core supply and a 3.3V I/O supply, with a power dissipation of 2.4W. The device supports multirate 10 GbE and 1 GbE operation for legacy interfaces.



Packaged in a compact 19 mm x 19 mm BGA package with a 1-mm ball pitch, the BCM8727BIFBG utilizes a single-reference clock input, enabling the use of low-cost 156.25 MHz oscillators. It includes built-in self-test (BIST) capabilities on its serial and XAUI interfaces and supports module present detection.



The BCM8727BIFBG is compliant with IEEE 802.3ae Clause 45 for its MDIO interface and supports XFP/XFI interfaces. Its LRM mode supports up to 300m of Multimode Fiber (MMF), exceeding the IEEE 802.3aq standard.

BCM8727BIFBG Quick Information

Product Type: Transceiver
Canonical Name: Broadcom Limited BCM8727BIFBG Dual-Channel 10-GbE SFI-to-XAUI Transceiver with EDC
Subcategory: Drivers, Receivers, Transceivers

BCM8727BIFBG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM8727BIFBG Features

  • Dual-channel 10-GbE SFI-to-XAUI transceiver
  • Integrated Electronic Dispersion Compensation (EDC)
  • Supports 10.3125 Gbps serial interface
  • 1.0V core and 3.3V I/O supply voltages
  • 19mm x 19mm BGA package

BCM8727BIFBG Applications

  • Ideal for 10Gb Ethernet systems.
  • Suitable for fiber optic links.
  • Supports copper twin-ax connections.
  • Enables LRM mode operation.
  • Designed for high-density integration.

BCM8727BIFBG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the interface type for the BCM8727BIFBG?

The BCM8727BIFBG features an SFI-to-XAUI interface.

What is the maximum data rate supported by the BCM8727BIFBG?

The device supports a data rate of 10.3125 Gbps on its serial interface and 3.125 Gbps per lane on its 4-lane XAUI interface.

What is the power dissipation of the BCM8727BIFBG?

The power dissipation for this component is 2.4W.

What are the supply voltages for the BCM8727BIFBG?

It requires a 1.0V core supply voltage and a 3.3V I/O supply voltage.

What is the reference clock frequency required?

The BCM8727BIFBG uses a single-reference clock input of 156.25 MHz.

What fiber optic modes does the BCM8727BIFBG support?

It supports LRM mode for up to 300m of Multimode Fiber (MMF).

What is the package type and size for the BCM8727BIFBG?

The component is supplied in a 19mm x 19mm BGA package with a 1mm ball pitch.
