| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,307 pcs
|
4307 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
4,165 pcs
|
4165 pcs | On Request | 1 | On Request | On Request | 1950+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Interface | |
| Mounting Type | |
| Number of Circuits | |
| Supplier Device Package |
The BCM8705BIFBG is a high-performance Serial 10-GbE/Fibre Channel Transceiver from Broadcom Limited. It integrates a complete CMU, CDR, SerDes, limiting amplifier, EyeOpener, and 4-lane XAUI interface. The device supports serial PMD interface rates of 9.953 Gbps, 10.3125 Gbps, and 10.5188 Gbps. It is designed for both LAN (10-GbE) and WAN (OC-192 SONET) applications, with typical power consumption of 900 mW in LAN mode and 1.0 W to 1.1 W in WAN mode.
The transceiver offers advanced features such as receive equalization, transmit pre-emphasis, and amplitude control on the XAUI interface. It includes a WIS layer for EOS/WAN applications and SONET performance monitoring. The device supports Broadcom's StrataXGS Ethernet switches service aware flow control (SAFC) protocol and meets IEEE 802.3ae and 10-Gigabit Fibre Channel standards.

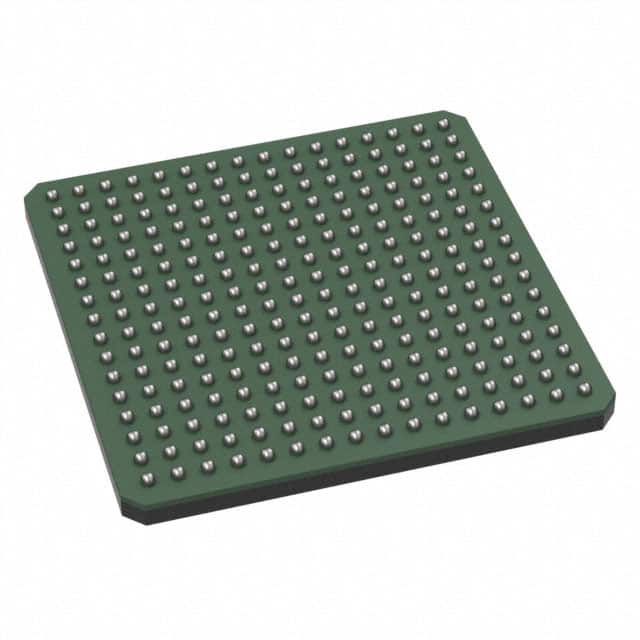

Packaged in a 256-ball BGA with options for 13 mm x 13 mm or 17 mm x 17 mm sizes, this surface-mount component is available in both standard and Pb-free versions. The compact design enables high-density line card applications in XENPAK, X2, XPAK, and XFP modules. The BCM8705BIFBG is pin-compatible with the BCM8704, offering an upgrade path for existing designs.
Transceiver.
1 circuit.
9.953 Gbps, 10.3125 Gbps, and 10.5188 Gbps.
Typically 900 mW in LAN mode and 1.0 W to 1.1 W in WAN mode.
256-BGA package with supplier device package 256-FBGA. Package sizes: 13mm x 13mm and 17mm x 17mm.
Yes, it is RoHS3 Compliant (unverified).
Surface Mount.
