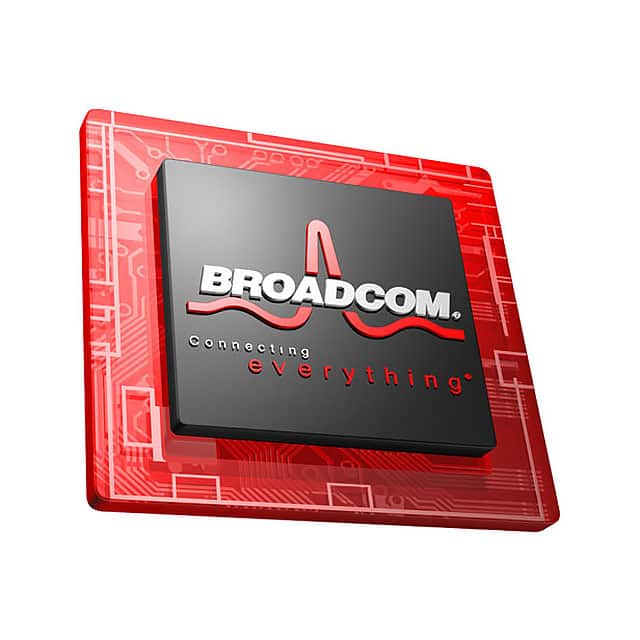

BCM5482SHEA2IFBG Broadcom BCM5482SHEA2IFBG is a dual-port 10/100/1000BASE-T Gigabit Ethernet transceiver in a 121-pin BGA package. It supports RGMII, SGMII, and SerDes interfaces with low power consumption of 725 mW per port.
Mfr Part #:

BCM5482SHEA2IFBG

Available from 2 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
Broadcom BCM5482SHEA2IFBG is a dual-port 10/100/1000BASE-T Gigabit Ethernet transceiver in a 121-pin BGA package. It supports RGMII, SGMII, and SerDes interfaces with low power consumption of 725 mW per port.
✓ Total Stock: 114 pcs

BCM5482SHEA2IFBG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM5482SHEA2IFBG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Data Rate
Industrial Grade
Medical Grade
Military Grade
Number of Pins
Number of Ports
SVHC Present
Technology
View Similar Products (0)

BCM5482SHEA2IFBG Description

Short technical summary and product information.

The Broadcom BCM5482SHEA2IFBG is a dual-port integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver. It provides multiple MAC interface options including RGMII, SGMII, and SerDes, and supports SGMII to SGMII for SFP modules. The device is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.



Key electrical characteristics include a typical power consumption of 725 mW per port, advanced power management, and support for jumbo packets up to 10 kB. The transceiver features CableChecker diagnostics for cable plant analysis, automatic MDI/MDIX crossover at all speeds, and robust cable-sourced electrostatic discharge (CESD) tolerance over 3 kV.



The BCM5482SHEA2IFBG is housed in a 121-pin BGA package and is fabricated on 0.13 µm CMOS technology for low power and cost. It supports both copper and fiber interfaces in RGMII mode, and enables compact solutions for high-density uplink applications. The device also includes IEEE 1149.1 (JTAG) boundary scan for ease of manufacturing.

BCM5482SHEA2IFBG Quick Information

Product Type: Gigabit Ethernet Transceiver
Series: BCM5482
Canonical Name: BCM5482SHEA2IFBG Dual-Port 10/100/1000BASE-T Gigabit Ethernet Transceiver
Subcategory: Gigabit Ethernet PHY

BCM5482SHEA2IFBG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM5482SHEA2IFBG Features

  • Dual-port 10/100/1000BASE-T transceiver.
  • 725 mW typical power per port.
  • Supports RGMII, SGMII, and SerDes.
  • 121-pin BGA package.
  • RoHS3 compliant and REACH unaffected.

BCM5482SHEA2IFBG Applications

  • High-density uplink applications in switches.
  • Direct interface to SFP modules.
  • Cable plant diagnostics with CableChecker.
  • Jumbo packet support up to 10 kB.
  • Compatible with IEEE standard devices at 10/100/1000 Mbps.

BCM5482SHEA2IFBG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type?

121-pin BGA.

Is the device RoHS compliant?

RoHS3 Compliant.

What data rates does the transceiver support?

10/100/1000 Mbps (10BASE-T, 100BASE-TX, 1000BASE-T).

What is the power consumption per port?

Typical 725 mW per port.

What MAC interfaces are supported?

RGMII, SGMII, and SerDes.

Which IEEE standards does it comply with?

IEEE 802.3, 802.3u, 802.3ab, 802.3z.

What is the maximum packet size?

Up to 10 kB (jumbo packets).
