| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,378 pcs
|
2378 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Power Consumption | |
| Protocol | |
| Type |

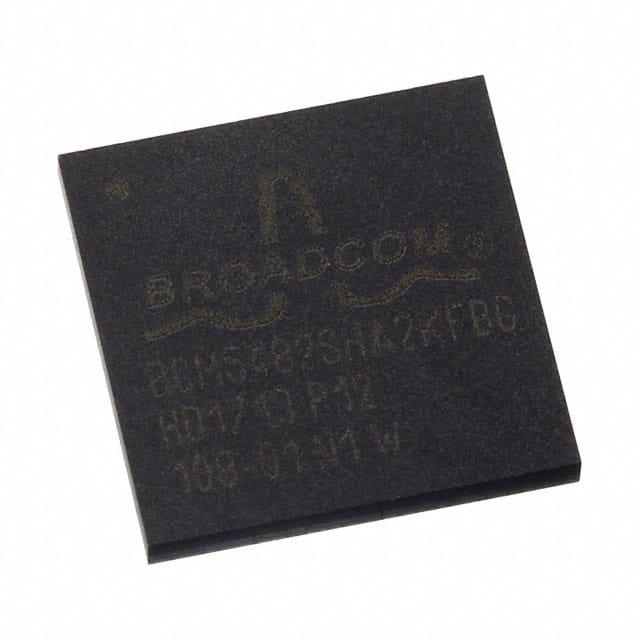

The BCM5482SHA2KFBG from Broadcom Limited is a dual-port, integrated 10/100/1000BASE-T Gigabit Ethernet transceiver. This device is built on a 0.13-micron CMOS process, optimizing for low power consumption and cost-effectiveness.
Key features include support for RGMII, SGMII, and SerDes MAC interface options, enabling flexible integration with various network processors. It is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards. The transceiver offers advanced power management and low EMI emissions.
Designed for high-density uplink applications, the BCM5482SHA2KFBG supports copper or fiber in RGMII mode and direct interface to SFP modules via 1000BASE-X and 100BASE-FX support. It includes diagnostic features like CableChecker™ for cable plant analysis and robust CESD tolerance.
The component is housed in a 121-pin BGA package, suitable for surface mount applications. It operates at Ethernet speeds of 10, 100, and 1000 Mbps in both half-duplex and full-duplex modes.
The BCM5482SHA2KFBG supports data rates of 10, 100, and 1000 Mbps.
The BCM5482SHA2KFBG has 2 drivers and 2 receivers.
The power consumption is 725 mW per port.
It supports RGMII, SGMII, and SerDes MAC interface options.
It is fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z standards.
The BCM5482SHA2KFBG supports jumbo packets up to 10 kB.
The transceiver is supplied in a 121-pin BGA package.
