| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,546 pcs
|
2546 pcs | On Request | 1 | On Request | On Request | 1524+ | On Request | On Request | |
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Lead Style | |
| Mounting Type | |
| Number of Drivers | |
| Protocol | |
| Technology | |
| Termination Style | |
| Type |

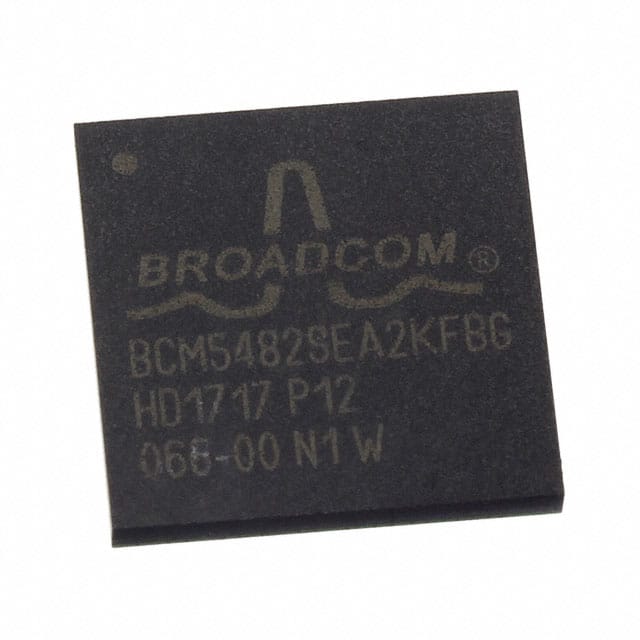

The BCM5482SEA2KFBG is a dual-port integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver from Broadcom Limited. It supports RGMII, SGMII, and SerDes MAC interface options, and is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
Key specifications include a data rate of 10/100/1000 Mbps, typical power consumption of 725 mW per port, and support for jumbo frames up to 10 kB. The device features CableChecker diagnostics for cable plant analysis, automatic MDI/MDIX crossover at all speeds, and robust cable-sourced ESD tolerance greater than 3 kV.
The transceiver is housed in a 121-pin BGA package with surface mount termination. It includes IEEE 1149.1 JTAG boundary scan support and is built on 0.13 µm CMOS technology for low power and cost. The device is suitable for high-density uplink applications and supports copper or fiber interfaces in RGMII mode.
The BCM5482SEA2KFBG supports data rates of 10/100/1000 Mbps (10BASE-T, 100BASE-TX, 1000BASE-T).
The BCM5482SEA2KFBG is housed in a 121-pin BGA package.
The BCM5482SEA2KFBG is listed as RoHS3 compliant, but this is unverified. Obtain compliance documentation from the manufacturer.
The BCM5482SEA2KFBG supports RGMII, SGMII, and SerDes MAC interfaces.
Yes, the BCM5482SEA2KFBG supports jumbo frames up to 10 kB.
The typical power consumption is 725 mW per port.
Yes, it includes CableChecker diagnostics for cable plant analysis.
