| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,768 pcs
|
2768 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
811 pcs
|
811 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Number of Pins | |
| Power Consumption | |
| Protocol | |
| Type |

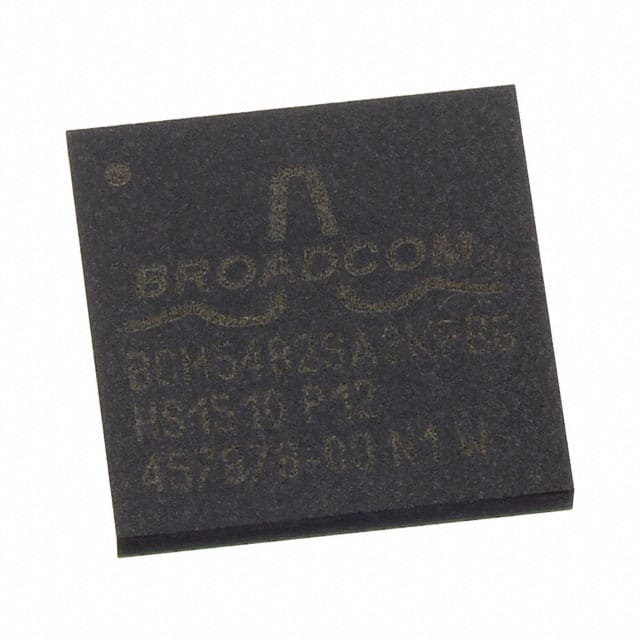

The BCM5482SA2KFBG is a dual-port 10/100/1000BASE-T Gigabit Ethernet transceiver from Broadcom, part of the BCM5482S family. It integrates two independent transceivers that support full and half duplex operation at data rates of 10, 100, and 1000 Mbps. The device is fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards.
The transceiver offers a low power consumption of 725 mW per port typical, thanks to its 0.13-micron CMOS process. It includes advanced features such as CableChecker diagnostics, automatic MDI/MDIX crossover, and support for jumbo packets up to 10 kB. Interface options include RGMII, SGMII, and SerDes for flexible MAC connectivity.
The BCM5482SA2KFBG is housed in a 121-pin BGA package and is designed for surface mount assembly. It is suitable for high-density uplink applications in enterprise switches, routers, and network interface cards. The device also supports SFP modules via SGMII to SGMII mode.
Ethernet.
10/100/1000 Mbps.
2 drivers and 2 receivers.
Full and half duplex.
725 mW per port typical.
121-pin BGA.
According to unverified data, it is RoHS3 compliant.
