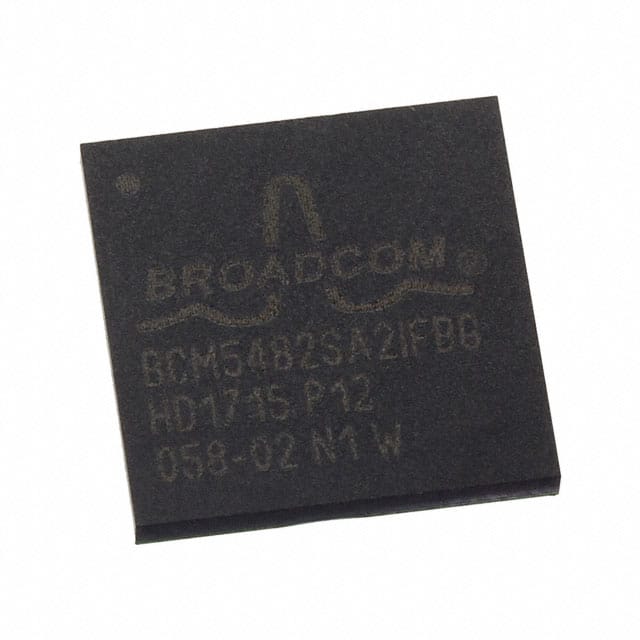

BCM5482SA2IFBG The BCM5482SA2IFBG is a dual-port 10/100/1000BASE-T Gigabit Ethernet transceiver from Broadcom. It features 2/2 drivers/receivers, supports full and half duplex, and comes in a 121-BGA surface mount package.
Mfr Part #:

BCM5482SA2IFBG

Available from 4 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
The BCM5482SA2IFBG is a dual-port 10/100/1000BASE-T Gigabit Ethernet transceiver from Broadcom. It features 2/2 drivers/receivers, supports full and half duplex, and comes in a 121-BGA surface mount package.
✓ Total Stock: 4,326 pcs

BCM5482SA2IFBG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM5482SA2IFBG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Mounting Type
Number of Drivers
Number of Ports
Protocol
Standards
Supplier Device Package
Type
View Similar Products (0)

BCM5482SA2IFBG Description

Short technical summary and product information.

The BCM5482SA2IFBG is a dual-port integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver from Broadcom. It supports RGMII, SGMII, and SerDes MAC interface options, enabling flexible connectivity to a variety of controllers and SFP modules. The device is fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.



Key electrical characteristics include a typical power consumption of 725 mW per port, advanced power management, and support for jumbo frames up to 10 kB. The transceiver incorporates CableChecker diagnostics for cable plant analysis, automatic MDI/MDIX crossover at all speeds, and robust cable-sourced ESD tolerance of 3 kV. It also features line-side and MAC-side loopback modes and JTAG boundary scan for manufacturing test.



The BCM5482SA2IFBG is housed in a 121-pin BGA package with surface mount mounting. It is designed for high-density uplink applications, enabling 10/100/1000BASE-T and 1000BASE-X/100BASE-FX uplinks from the same line-side pins. The compact solution lowers system BOM cost and simplifies design for enterprise switches, industrial Ethernet equipment, and SFP module interfaces.

BCM5482SA2IFBG Quick Information

Product Type: Transceiver
Canonical Name: Broadcom BCM5482SA2IFBG Dual-Port 10/100/1000BASE-T Gigabit Ethernet Transceiver
Subcategory: Ethernet Transceiver

BCM5482SA2IFBG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM5482SA2IFBG Features

  • Dual-port 10/100/1000BASE-T transceiver.
  • Supports RGMII, SGMII, and SerDes interfaces.
  • Low power consumption of 725 mW per port.
  • Integrated CableChecker diagnostics.
  • Jumbo frame support up to 10 kB.

BCM5482SA2IFBG Applications

  • Ideal for high-density uplink applications.
  • Enables direct interface to SFP modules.
  • Used in enterprise network switches.
  • Suitable for industrial Ethernet equipment.

BCM5482SA2IFBG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the BCM5482SA2IFBG?

121-BGA surface mount package.

Is the BCM5482SA2IFBG RoHS compliant?

RoHS3 Compliant (unverified).

What data rates does the BCM5482SA2IFBG support?

10/100/1000 Mbps.

What interfaces are available on the BCM5482SA2IFBG?

RGMII, SGMII, and SerDes.

Does the BCM5482SA2IFBG support jumbo frames?

Yes, up to 10 kB.

What is the power consumption of the BCM5482SA2IFBG?

725 mW per port typical.

What diagnostic features are included?

CableChecker diagnostics for cable plant analysis.
