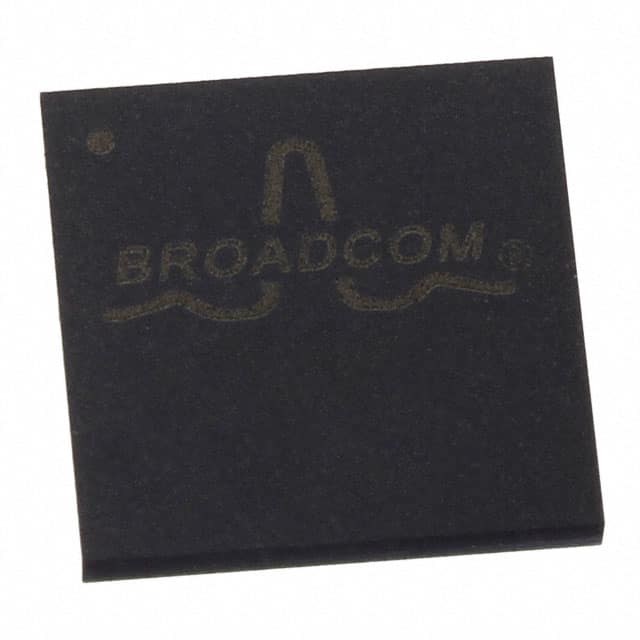

The Broadcom Limited BCM5482A2KFBG is a dual-port, 10/100/1000BASE-T Gigabit Ethernet transceiver integrated onto a single CMOS chip. It offers RGMII, SGMII, and SerDes MAC interface options and operates at 1000 Mbps data rates.
This transceiver supports both full and half duplex modes and is designed for low power consumption, with 600 mW per port. It includes advanced power management features and robust cable diagnostics with its CableChecker™ technology, which analyzes cable plant impairments. The device supports jumbo packets up to 10 kB and has over 3 kV of CESD tolerance.
Packaged in a 121-pin BGA, the BCM5482A2KFBG is suitable for space-constrained applications such as IP phones. Its design simplifies system integration with features like JTAG boundary scan and multiple MAC interfaces, potentially lowering system BOM costs and easing debugging. It is compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards.
The BCM5482A2KFBG supports a data rate of 1000 Mbps.
The BCM5482A2KFBG has 2 drivers and 2 receivers.
The BCM5482A2KFBG supports both full and half duplex modes.
The BCM5482A2KFBG is supplied in a 121-BGA package.
The BCM5482A2KFBG is designed for surface mount applications.
The power consumption is 600 mW per port.
Yes, the BCM5482A2KFBG supports jumbo packets up to 10 kB.
