| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Power Dissipation | |
| Protocol | |
| SVHC Present | |
| Type |

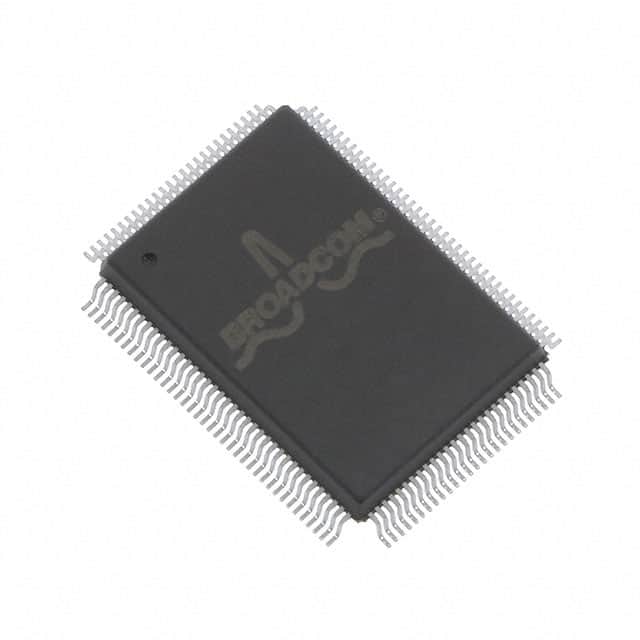

The Broadcom BCM5461SA2KQMG is a fully-integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver designed for copper and fiber applications. It complies with IEEE 802.3, 802.3u, and 802.3ab standards and supports GMII, RGMII, SGMII, SerDes, RTBI, and MII MAC interface options. The device operates at 10/100/1000 Mbps data rates in both full and half duplex modes.
Key features include low power consumption of less than 700 mW per port, on-chip low-voltage regulators, automatic MDI/MDIX crossover at all speeds, cable plant diagnostic functions, and support for jumbo packets up to 9 KB. The transceiver is built on 0.13µm CMOS technology and includes IEEE 1149.1 JTAG boundary scan.
The BCM5461SA2KQMG is offered in a 100-pin FBGA package with surface mount mounting. Alternate package options include 128-pin MQFP and 117-pin BGA. The device requires no airflow or heatsink and helps simplify system design by reducing I/O pin requirements.
Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T).
10/100/1000 Mbps.
Yes, it supports both full and half duplex operation.
Typical power dissipation is less than 700 mW per port.
The primary package is 100-pin FBGA; also available in 128-pin MQFP and 117-pin BGA.
It has 1 driver and 1 receiver.
