| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Number of Drivers | |
| Number of Pins | |
| Power Consumption Max | |
| Protocol | |
| SVHC Present | |
| Type |

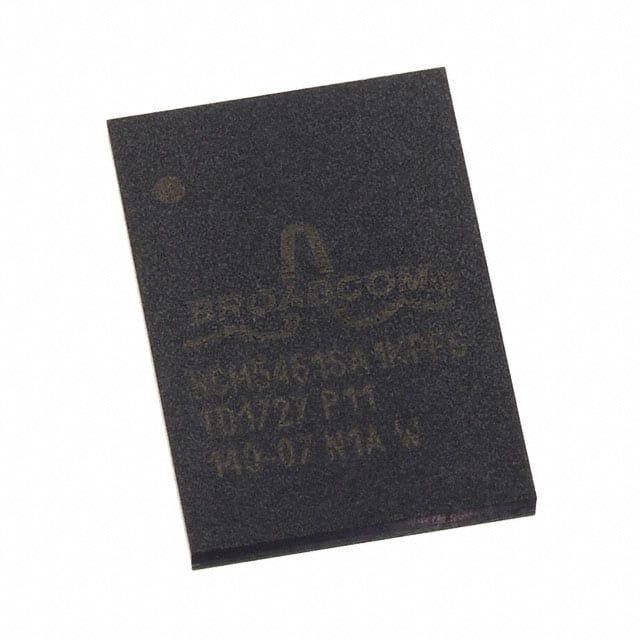

The BCM5461SA1KPFG is a fully-integrated 10/100/1000BASE-T Gigabit Ethernet transceiver designed by Broadcom. It supports multiple MAC interface options including GMII, RGMII, SGMII, SerDes, RTBI, and MII, providing flexibility for various system designs.
It operates at data rates of 10, 100, and 1000 Mbps in both full and half duplex modes. The device consumes less than 700 mW per port and includes advanced power management features such as Wake on LAN. It is compliant with IEEE 802.3, 802.3u, and 802.3ab standards.
The transceiver incorporates on-chip low-voltage regulators, cable plant diagnostic functions, and automatic MDI/MDIX crossover at all speeds. It supports jumbo packets up to 9 KB and includes IEEE 1149.1 JTAG boundary scan for testing.
The BCM5461SA1KPFG is offered in a 100-pin FBGA (Fine-Pitch Ball Grid Array) package, suitable for compact PCB layouts.
10/100/1000 Mbps (10BASE-T, 100BASE-TX, 1000BASE-T).
Yes, it supports both full and half duplex operation.
Less than 700 mW per port.
Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T) with MAC interface options including GMII, RGMII, SGMII, SerDes, RTBI, and MII.
1 driver and 1 receiver.
100-pin FBGA (Fine-Pitch Ball Grid Array).
According to existing data, it is RoHS3 compliant, but this is unverified.
