Mfr Part #:

BCM5461SA1IPFG

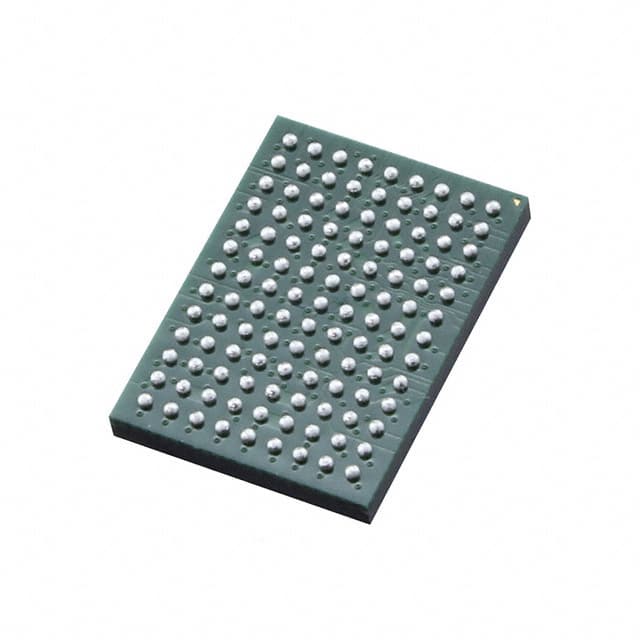

Broadcom BCM5461SA1IPFG is a 1/1 Ethernet transceiver in a 117-LBGA package. Supports Full and Half duplex operation with surface mount mounting.

✓ Total Stock: 5,637 pcs

BCM5461SA1IPFG Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2,500 pcs On Request	2500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,638 pcs On Request	1638 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	1,240 pcs On Request	1240 pcs	On Request	1	On Request	On Request	22+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	250 pcs On Request	250 pcs	On Request	1	On Request	On Request	1215+	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	907	On Request	On Request

BCM5461SA1IPFG Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Drivers, Receivers, Transceivers
Manufacturer Name	Broadcom Limited
Duplex	Full, Half
Mounting Type	Surface Mount
Number of Drivers	1/1
Protocol	Ethernet
Supplier Device Package	117-BGA
Type	Transceiver

View Similar Products (0)

BCM5461SA1IPFG Description

Short technical summary and product information.

The Broadcom BCM5461SA1IPFG is a 1/1 Ethernet transceiver designed for 10/100/1000BASE-T Gigabit Ethernet applications. It supports both full and half duplex modes and is fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards. The device integrates a single driver and receiver, making it suitable for point-to-point Ethernet links.

The transceiver is housed in a 117-LBGA (117-BGA) package and is intended for surface mount assembly. Typical power consumption is less than 700 mW per port, enabling efficient operation. The device supports jumbo frames up to 9 KB and includes advanced cable diagnostic features.

This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is classified under the Interface Drivers, Receivers, Transceivers category.

BCM5461SA1IPFG Quick Information

Product Type: Ethernet Transceiver

Canonical Name: BCM5461SA1IPFG Ethernet Transceiver

Subcategory: Ethernet Transceiver

BCM5461SA1IPFG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BCM5461SA1IPFG Features

1 driver and 1 receiver Ethernet transceiver.
Surface mount 117-LBGA package.
Full and half duplex operation.
Typical power less than 700 mW per port.
Compliant with IEEE 802.3, 802.3u, 802.3ab.

BCM5461SA1IPFG Applications

Gigabit Ethernet communication links.
Network interface cards and switches.
Industrial Ethernet equipment.
Embedded networking applications.

BCM5461SA1IPFG FAQs

5 frequently asked questions generated from this part’s specifications.

What is the package type of the BCM5461SA1IPFG?

The BCM5461SA1IPFG is housed in a 117-LBGA (117-BGA) package.

What type of transceiver is the BCM5461SA1IPFG?

It is an Ethernet transceiver supporting full and half duplex operation.

How many drivers and receivers does the BCM5461SA1IPFG have?

It has 1 driver and 1 receiver.

Is the BCM5461SA1IPFG RoHS compliant?

Yes, it is listed as RoHS3 compliant.

What is the typical power consumption of the BCM5461SA1IPFG?

Typical power consumption is less than 700 mW per port.
