| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Interface | |
| Mounting Type | |
| Number of Ports | |
| Power Consumption | |
| Protocol | |
| SVHC Present | |
| Type |
The BCM5461A1KFBG is a single-port 10/100/1000BASE-T Gigabit Ethernet transceiver from Broadcom Limited. It is fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards. The device supports 10BASE-T, 100BASE-TX, and 1000BASE-T operation at all speeds with half- and full-duplex support.
Interface options include GMII, RGMII, RTBI, and MII MAC interfaces, providing flexibility for various system architectures. Power consumption is less than 700 mW per port, with advanced power management and Wake on LAN support. The transceiver is built on 0.13 µm CMOS technology, enabling low power and cost.

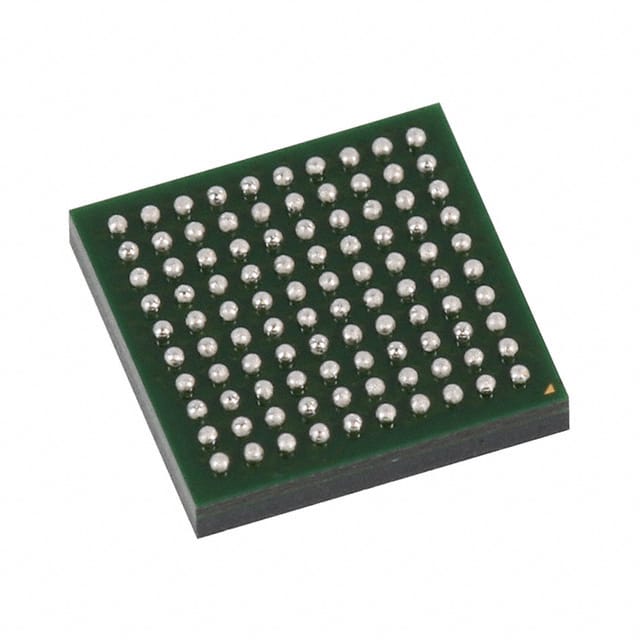

The part is offered in a 100-FBGA (Fine-pitch Ball Grid Array) package for surface mount assembly. It supports jumbo frames up to 9 KB, automatic MDI/MDIX crossover at all speeds, and includes line-side loopback and cable diagnostic functions. Additional features include IEEE 1149.1 (JTAG) boundary scan for manufacturing test and low EMI emissions.
It supports 10BASE-T (10 Mbps), 100BASE-TX (100 Mbps), and 1000BASE-T (1000 Mbps) operation.
It supports GMII, RGMII, RTBI, and MII.
Less than 700 mW per port.
The BCM5461A1KFBG is offered in a 100-FBGA package.
Yes, it supports jumbo packets up to 9 KB.
The part is listed as RoHS3 compliant, but compliance status is unverified.
Surface mount.
