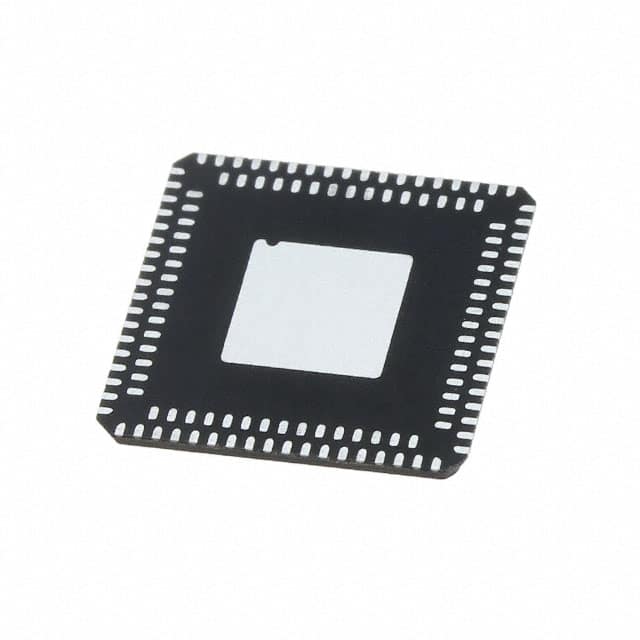

BCM53101MKMLG The BCM53101MKMLG is a seven-port managed 10/100 Ethernet switch from Broadcom Limited. It integrates five 10/100 PHY ports, a 2K MAC address table, 4K VLAN entries, and consumes less than 0.7W.
Mfr Part #:

BCM53101MKMLG

Available from 1 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
The BCM53101MKMLG is a seven-port managed 10/100 Ethernet switch from Broadcom Limited. It integrates five 10/100 PHY ports, a 2K MAC address table, 4K VLAN entries, and consumes less than 0.7W.
✓ Total Stock: 4,543 pcs

BCM53101MKMLG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
4,543 pcs
On Request
4543 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM53101MKMLG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Number of Ports
Power Consumption
Protocol
Standards
Voltage
View Similar Products (0)

BCM53101MKMLG Description

Short technical summary and product information.

The Broadcom BCM53101 is a seven-port managed 10/100 Ethernet switch designed for cost-effective Layer 2 switching applications.



It integrates five 10/100 MACs with integrated 10/100 PHYs, one 10/100 MAC with MII/RvMII/RMII, and one 10/100/1000 MAC with RGMII/MII/RvMII/RMII. Key features include a 2K MAC address table, 2KB maximum frame size, and 4K-entry VLAN support (port-based and 802.1Q). The switch offers four Class of Service queues per port based on 802.1p and DiffServ.



Built on 65nm low-power technology, the device operates with a 1.2V core supply and 2.5V/3.3V I/O. Typical full power consumption is less than 0.7W, with green features including auto power down, sleep, and deep sleep modes.



The BCM53101 supports IEEE 802.1x security, Spanning Tree Protocol variants, port mirroring, IGMP/MLD snooping, and IEEE 802.1 Audio Video Bridging. It is suitable for managed Fast Ethernet switches requiring a single-chip solution.

BCM53101MKMLG Quick Information

Product Type: Ethernet Switch IC
Canonical Name: Broadcom BCM53101 Seven-Port Managed 10/100 RoboSwitch
Subcategory: Managed Switch Controller

BCM53101MKMLG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM53101MKMLG Features

  • Seven-port 10/100 managed Ethernet switch.
  • Integrates five 10/100 PHY transceivers.
  • 2K MAC address table with 4K VLAN entries.
  • Typical power consumption under 0.7W.
  • Built on 65nm low-power CMOS process.

BCM53101MKMLG Applications

  • Managed Fast Ethernet switch designs.
  • Cost-effective Layer 2 networking equipment.
  • Secure user authentication with 802.1x.
  • Audio Video Bridging multicast applications.
  • Six Fast Ethernet plus one Gigabit Ethernet switches.

BCM53101MKMLG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the BCM53101MKMLG?

Core voltage 1.2V, I/O voltage 2.5V/3.3V.

How many ports does the BCM53101MKMLG support?

7 ports: five 10/100 PHY ports, one 10/100 MAC with MII/RvMII/RMII, one 10/100/1000 MAC with RGMII/MII/RvMII/RMII.

What is the MAC address table size?

2K entries.

Does the device support VLAN?

Yes, supports 4K VLAN entries, port-based and 802.1Q.

What is the maximum frame size?

2 KB.

What is the typical power consumption?

Less than 0.7W.

Is the BCM53101MKMLG RoHS compliant?

Yes, RoHS3 compliant (unverified).
