BCM5221A4KPTG The BCM5221A4KPTG is an Ethernet transceiver from Broadcom Limited featuring 1/1 driver/receiver, supporting 10/100 Mbps data rates over MII/RMII interfaces. It operates from 2.5V to 3.3V supply and offers industrial temperature range of -40°C to 85°C.
Mfr Part #:

BCM5221A4KPTG

Available from 7 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
The BCM5221A4KPTG is an Ethernet transceiver from Broadcom Limited featuring 1/1 driver/receiver, supporting 10/100 Mbps data rates over MII/RMII interfaces. It operates from 2.5V to 3.3V supply and offers industrial temperature range of -40°C to 85°C.
✓ Total Stock: 15,925 pcs

BCM5221A4KPTG Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM5221A4KPTG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Interface
Mounting Type
Number of Drivers
Operating Temperature
Power Consumption
Protocol
Type
Voltage
View Similar Products (0)

BCM5221A4KPTG Description

Short technical summary and product information.

The BCM5221A4KPTG is a 10/100BASE-TX/FX Mini-Φ transceiver from Broadcom Limited. It integrates a single driver/receiver pair and supports both MII and RMII interfaces for flexible connectivity. The device operates from a supply voltage of 2.5V to 3.3V and includes an integrated voltage regulator for single-supply operation. Power consumption is under 175 mW, aided by intelligent power management and energy detection circuits.



This transceiver is designed for Fast Ethernet applications and features DSP-based Signi-PHY architecture for robust performance across temperature, voltage, and process variations. It supports IEEE 1149.1 JTAG scan chain for testing and includes HP Auto-MDIX for automatic cable detection. Cable diagnostic features provide remote monitoring of cabling infrastructure.

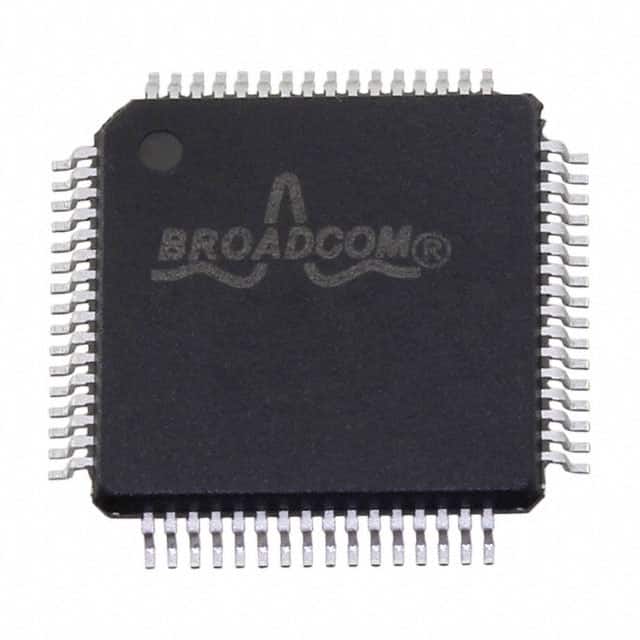

The part is offered in a 64-pin TQFP surface-mount package (inferred) and is rated for industrial temperature operation from -40°C to 85°C. It is RoHS3 compliant (unverified) and suitable for embedded 10/100BASE-TX applications including LAN on motherboard, IP phones, and network controllers.

BCM5221A4KPTG Quick Information

Product Type: Transceiver
Canonical Name: Broadcom BCM5221A4KPTG 10/100BASE-TX/FX Mini-Φ Transceiver
Subcategory: Ethernet Transceiver

BCM5221A4KPTG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM5221A4KPTG Features

  • 10/100BASE-TX/FX Fast Ethernet transceiver.
  • Supports MII and RMII interfaces.
  • Low power consumption under 175 mW.
  • Industrial temperature range -40°C to 85°C.
  • Integrated JTAG scan chain support.

BCM5221A4KPTG Applications

  • Used in servers and network controllers.
  • Suitable for LAN on motherboard (LOM).
  • Ideal for IP phones and cable modems.
  • Applied in set-top boxes and digital TVs.

BCM5221A4KPTG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the BCM5221A4KPTG?

2.5V to 3.3V.

What is the operating temperature range?

-40°C to 85°C.

What data rate does the BCM5221A4KPTG support?

10/100 Mbps.

What interfaces are supported?

MII and RMII.

What package type is the BCM5221A4KPTG available in?

Inferred 64-pin TQFP surface-mount package (unconfirmed).

Is the BCM5221A4KPTG RoHS compliant?

Listed as RoHS3 Compliant, but unverified.

Does the BCM5221A4KPTG support JTAG?

Yes, IEEE 1149.1 JTAG scan chain is supported.
