| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,778 pcs
|
8778 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Enable/Disable Control | |
| Features | |
| Height | |
| Input Voltage (Nominal) | |
| Input Voltage Min | |
| Input Voltage Range | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Power | |
| Output Voltage - Nominal | |
| Output Voltage Range | |
| Package / Case | |
| Package Style | |
| Power (Watts) | |
| Protection Features | |
| Temperature Monitor | |
| Termination Style | |
| Topology | |
| Transformation Ratio | |
| Type | |
| Voltage | |
| Width |

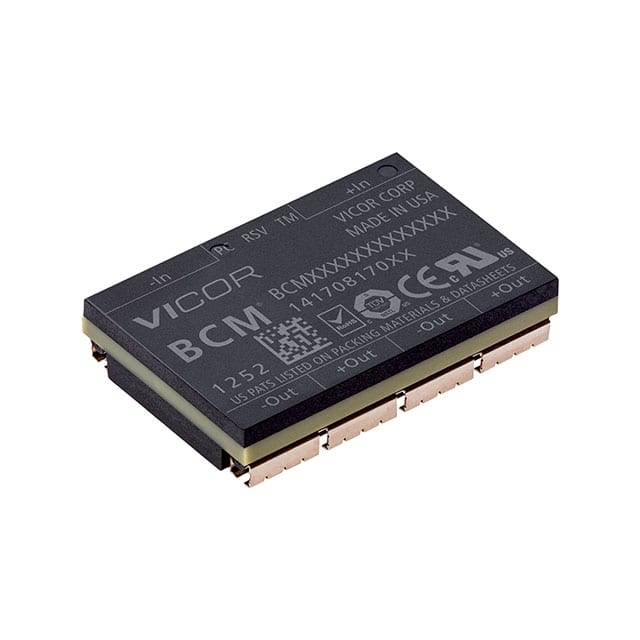

The BCM48BF096T240A00 is a bus converter module from Vicor, part of the BCM series. It operates as an isolated fixed ratio DC-DC converter using Sine Amplitude Converter topology. The input voltage range is 38V to 55V DC, with a nominal 48V input, and it provides a nominal output of 9.6V DC, adjustable from 7.6V to 11.0V. It delivers up to 240W of output power at 30A with a typical efficiency of 95%.
Built-in protection features include overcurrent protection (OCP), overtemperature protection (OTP), short circuit protection (SCP), and undervoltage lockout (UVLO). The module also includes enable/disable control and temperature monitoring. The 1/5 transformation ratio allows for reduced capacitance at the output, saving board space and system cost.
The module is housed in a VI Chip J-Lead package designed for surface mount assembly. It measures 32.5mm x 22.0mm x 6.7mm and operates over a temperature range of -40°C to 125°C. Typical applications include high end computing systems, automated test equipment, high density power supplies, and communications systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $109.24 | $109.24 |
| 10+ | $91.08 | $91.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
38V to 55V DC.
9.6V nominal, adjustable from 7.6V to 11.0V.
240W maximum.
95% typical.
VI Chip J-Lead surface mount module.
-40°C to 125°C.
Yes, RoHS3 compliant (unverified).
