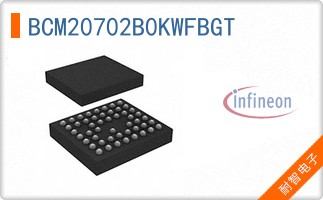

BCM20702B0KWFBGT The Infineon BCM20702B0KWFBGT is an RF Transceiver with integrated MCU, supporting Bluetooth 4.0 +EDR. It operates in the 2.4GHz band with a data rate of 3Mbps.
Mfr Part #:

BCM20702B0KWFBGT

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon BCM20702B0KWFBGT is an RF Transceiver with integrated MCU, supporting Bluetooth 4.0 +EDR. It operates in the 2.4GHz band with a data rate of 3Mbps.
✓ Total Stock: 19,304 pcs
$ Price Range: $2.22

BCM20702B0KWFBGT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
19,304 pcs
On Request
19304 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BCM20702B0KWFBGT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Data Rate
Frequency
Industrial Grade
Medical Grade
Military Grade
Modulation
Mounting Type
Storage Temperature
Tape & Reel
View Similar Products (0)

BCM20702B0KWFBGT Description

Short technical summary and product information.

The BCM20702B0KWFBGT from Infineon is a highly integrated RF transceiver with an embedded microcontroller, designed for Bluetooth 4.0 +EDR applications. This component operates in the 2.4GHz frequency band, offering a data rate of up to 3Mbps. It features a transmit power of +10dBm and a receive sensitivity of -92dBm, making it suitable for various wireless communication tasks.



The device supports multiple interfaces including I2C, SPI, UART, USB, and GPIO, providing flexibility in system integration. It operates within a voltage range of 2.3V to 5.5V, with a typical supply current of 32mA and a peak current of 65mA. The operating temperature range is from -30°C to 85°C.



Packaged in a 50-WFBGA format, the BCM20702B0KWFBGT is designed for surface mounting. Its robust specifications make it a versatile choice for applications requiring reliable Bluetooth connectivity.

BCM20702B0KWFBGT Quick Information

Product Type: RF Transceiver + MCU
Canonical Name: BCM20702B0KWFBGT RF Transceiver + MCU
Subcategory: Audio Special Purpose

BCM20702B0KWFBGT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BCM20702B0KWFBGT Estimated Pricing

Qty Low High
1+ $2.22 $2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

BCM20702B0KWFBGT Features

  • Bluetooth 4.0 +EDR wireless technology.
  • Integrated RF transceiver and MCU.
  • Operates at 2.4GHz frequency band.
  • Supports 3Mbps data rate.
  • Surface mount 50-WFBGA package.

BCM20702B0KWFBGT Applications

  • Ideal for wireless audio streaming.
  • Suitable for IoT device connectivity.
  • Used in portable electronic devices.
  • Enables short-range data communication.

BCM20702B0KWFBGT FAQs

6 frequently asked questions generated from this part’s specifications.
What Bluetooth version does the BCM20702B0KWFBGT support?

The BCM20702B0KWFBGT supports Bluetooth version 4.0 +EDR.

What is the operating frequency of the BCM20702B0KWFBGT?

The operating frequency is 2.4GHz.

What is the maximum data rate for this Bluetooth module?

The maximum data rate is 3Mbps.

What is the operating voltage range?

The operating voltage range is 2.3V to 5.5V.

What is the operating temperature range?

The operating temperature range is -30°C to 85°C.

What package type is the BCM20702B0KWFBGT available in?

It is available in a 50-WFBGA package.
