| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Frequency | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage | |
| Weight |

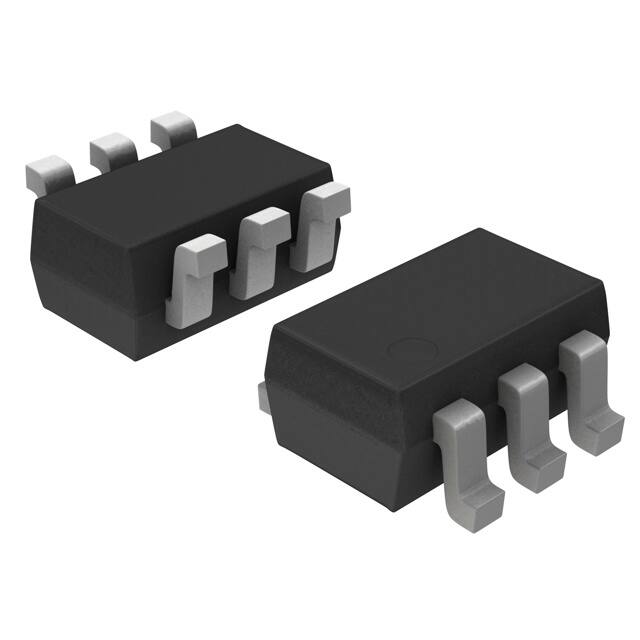

The PANJIT BC857CS_R1_00001 is a dual PNP general purpose transistor designed for amplifier and switching applications. It is housed in a compact SOT-363 surface mount package. Key electrical specifications include a maximum collector-emitter voltage (VCEO) of 45V, a maximum collector current (IC) of 100mA, and a power dissipation of 225mW. The device offers a minimum DC current gain (hFE) of 420 at 2mA, 5V, and a transition frequency (fT) of 200MHz, making it suitable for high-frequency applications.
The transistor is rated for operation over a junction temperature range of -55°C to 150°C. It is fully RoHS3 compliant, lead-free, and halogen-free, meeting modern environmental standards. The SOT-363 package provides a small footprint ideal for space-constrained designs. The dual transistor configuration allows for space savings and matched performance in differential amplifier stages or other applications requiring two PNP transistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
| 6,000+ | $0.04 | $0.04 |
| 9,000+ | $0.04 | $0.04 |
| 24,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45V.
SOT-363.
-55°C to 150°C.
Yes, it is RoHS3 compliant, lead-free, and halogen-free.
Minimum 420 at Ic=2mA, Vce=5V.
200 MHz.
Surface mount, SOT-363 package.
