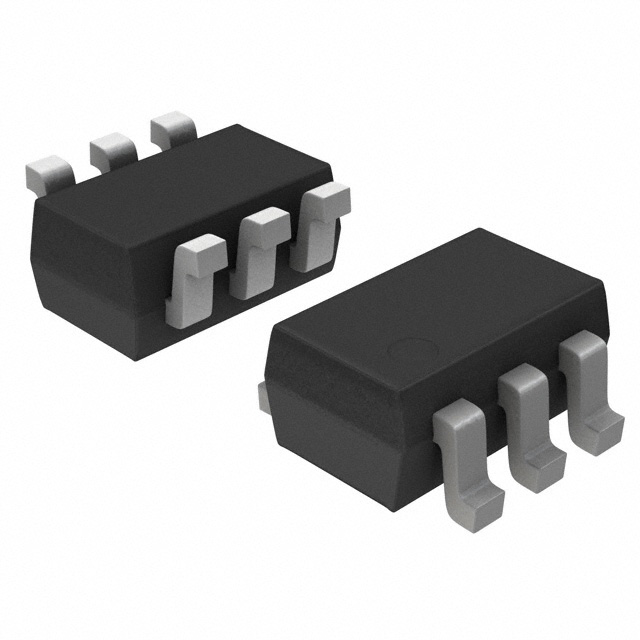

BC847BS-TP Dual NPN small signal transistor in SOT-363 package. 45V collector-emitter voltage, 100mA collector current, 300mW power dissipation.
Mfr Part #:

BC847BS-TP

Available from 2 distributors
Mfr Name: Micro Commercial
Micro Commercial
Dual NPN small signal transistor in SOT-363 package. 45V collector-emitter voltage, 100mA collector current, 300mW power dissipation.
✓ Total Stock: 649,373 pcs
$ Price Range: $0.10 - $0.46

BC847BS-TP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
649,324 pcs
On Request
649324 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BC847BS-TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Halogen Free
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

BC847BS-TP Description

Short technical summary and product information.

The BC847BS-TP is a dual NPN small signal transistor from Micro Commercial Components, designed for switching and AF amplifier applications. It features two NPN transistors in a compact SOT-363 surface mount package.



Key electrical characteristics include a maximum collector-emitter voltage of 45V, collector-base voltage of 50V, and emitter-base voltage of 6V. The device can handle a continuous collector current of 100mA with a peak of 200mA. Power dissipation is rated at 300mW with a thermal resistance of 417°C/W junction-to-ambient. DC current gain (hFE) ranges from 200 to 450 at VCE=5V, IC=2mA, and the transition frequency is typically 200MHz.



The BC847BS-TP is RoHS compliant and halogen free, with a moisture sensitivity level of 1. It is supplied in a lead-free finish and is suitable for automated assembly processes.

BC847BS-TP Quick Information

Product Type: Bipolar Transistor Array
Canonical Name: BC847BS-TP Dual NPN Small Signal Transistor
Subcategory: Dual NPN

BC847BS-TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

BC847BS-TP Estimated Pricing

Qty Low High
1+ $0.46 $0.46
10+ $0.32 $0.32
100+ $0.20 $0.20
500+ $0.13 $0.13
1,000+ $0.11 $0.11
3,000+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

BC847BS-TP Features

  • Dual NPN transistors in SOT-363 package.
  • 45V maximum collector-emitter voltage.
  • 100mA continuous collector current.
  • DC current gain of 200 to 450.
  • RoHS compliant and halogen free.

BC847BS-TP Applications

  • Switching circuits and AF amplifiers.
  • Low-power signal amplification.
  • General purpose transistor array applications.

BC847BS-TP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the BC847BS-TP?

The operating junction temperature range is -55°C to 150°C.

What package is the BC847BS-TP available in?

It is available in 6-TSSOP, SC-88, SOT-363 packages; the supplier device package is SOT-363.

Is the BC847BS-TP RoHS compliant?

Yes, it is RoHS3 compliant with a lead-free finish.

What is the maximum collector-emitter voltage (VCEO) of the BC847BS-TP?

The maximum VCEO is 45V.

What is the DC current gain (hFE) of the BC847BS-TP?

The DC current gain ranges from 200 to 450 at VCE=5V, IC=2mA.

What is the maximum collector current of the BC847BS-TP?

The maximum continuous collector current is 100mA, with a peak of 200mA.

What is the transition frequency (fT) of the BC847BS-TP?

The typical transition frequency is 200 MHz at VCE=5V, IC=10mA.
