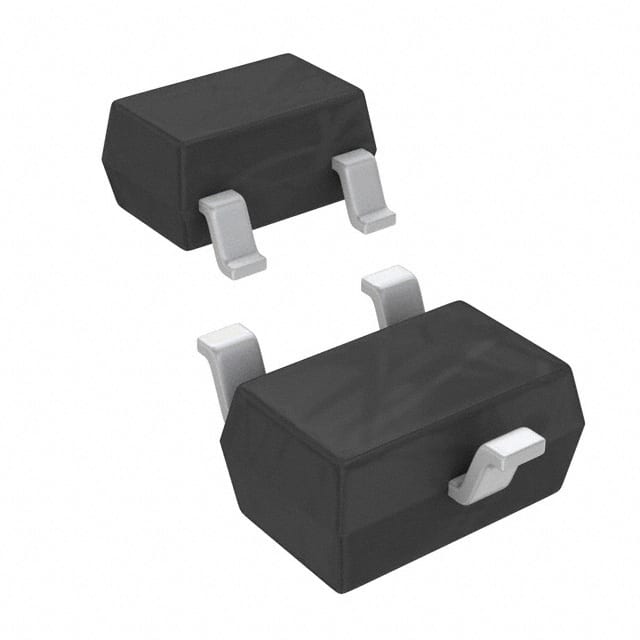

The PANJIT BC817-40W_R1_00001 is an NPN general purpose transistor designed for amplifier and switching applications. It features a collector-emitter voltage rating of 45V and a continuous collector current of 500mA, with a peak collector current of 1000mA. The device offers a DC current gain (hFE) of 250 to 600 at 100mA, ensuring consistent performance in signal amplification.
This transistor is housed in a compact SOT-323 (SC-70) surface-mount package, suitable for space-constrained PCB designs. It has a maximum power dissipation of 300mW and operates over a junction temperature range of -55°C to +150°C. The device is RoHS compliant and halogen-free, meeting modern environmental standards.
Typical applications include general purpose amplification, signal processing, and low-power switching circuits. The BC817-40W variant is part of the BC817-16W series, offering a higher current gain range for designs requiring greater amplification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.11 | $0.11 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.05 | $0.05 |
| 6,000+ | $0.04 | $0.04 |
| 9,000+ | $0.04 | $0.04 |
| 24,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) is 45V.
The maximum continuous collector current (IC) is 500mA.
The transistor is available in an SOT-323 (SC-70) surface-mount package.
The junction and storage temperature range is -55°C to +150°C.
Yes, the datasheet states it is lead-free and in compliance with EU RoHS 2011/65/EU directive.
The DC current gain ranges from 250 to 600 at Ic=100mA, Vce=1V, and is at least 40 at Ic=500mA, Vce=1V.
The maximum total power dissipation is 300mW.
